Nissan Altima IV (L32/D32) (2006-2013)

Depending on the model year and body type of attachment may vary.

Front bumper

-open the hood.

-take out the caps (inserted from top to bottom) that secure the grille and the upper bumper section.

-at the bottom, take out the caps and unscrew the screws (twisted and inserted from the bottom up) that secure the protection of the engine and wing flaps.

-wrenched the wheel left or right, depending on which side of the bed will disassemble.

-wheel arches take out the rivets and removed the fender liner.

-attach the fender liner to the side and Unscrew one screw on each side (spun upwards) holding the corners to the wings.

-s the assistant pulls gently on the bumper itself.

-remove the connectors from the fog lights (if any).

-remove connector from the PDC (if any).

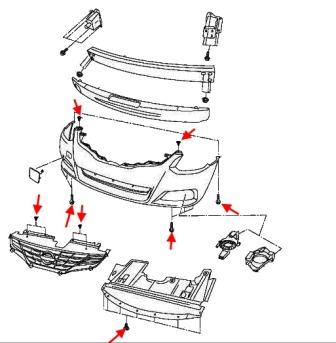

the attachment of the front bumper Nissan Altima L32 (D32) (2006-2013)

Front bumper mounting scheme for Nissan Altima IV (L32/D32) (2006-2013)



Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-in the boot remove the side trim (you need to access the rear part of the rear lights).

-for casings, unscrew the nuts and remove the tail lights.

-the rear lights take out one piston on each side (inserted upside down).

-unscrew the two screws on the edges of the opening of the trunk.

-wheel arches take out the rivets and removed the fender liner.

-for wheel arch liners unscrew one screw on each side (spun upwards) that secure the corner bumper to the wings.

-at the bottom, take out the caps (inserted from the bottom up) that secure the lower part.

-with the assistant release the latch and gently pulls the bumper itself.

-remove the connectors from the equipment (if any).

 the attachment of the rear bumper Nissan Altima L32 (D32) (2006-2013)

Mounting scheme rear bumper Nissan Altima IV (L32/D32) (2006-2013)

Mounting diagram for rear light Nissan Altima IV (L32/D32) (2006-2013)

Mounting scheme rear bumper Nissan Altima IV (L32/D32) (2006-2013)
