Depending on the year of manufacture, the attachment points may differ slightly.

Front bumper

-open the hood.

-under the hood, Unscrew the three screws that secure the radiator grill.

-remove the direction indicators (from the engine compartment you need to press the lever and pull the direction indicator forward).

-in the openings of the direction indicators, Unscrew one nut on each side and remove the radiator grill.

-the radiator grill, Unscrew the two screws.

-Unscrew the two screws, release them from the latches and remove the grill in the bumper.

-at the edges of the lattice opening, unscrew the two screws (twisted from bottom to top).

-turn the wheels to the side.

-Unscrew three screws on each side in the wheel arches.

-with an assistant, carefully pull the bumper forward from the guides in the wings (look behind the wires).

-disconnect the connectors of the electrical equipment (if any).

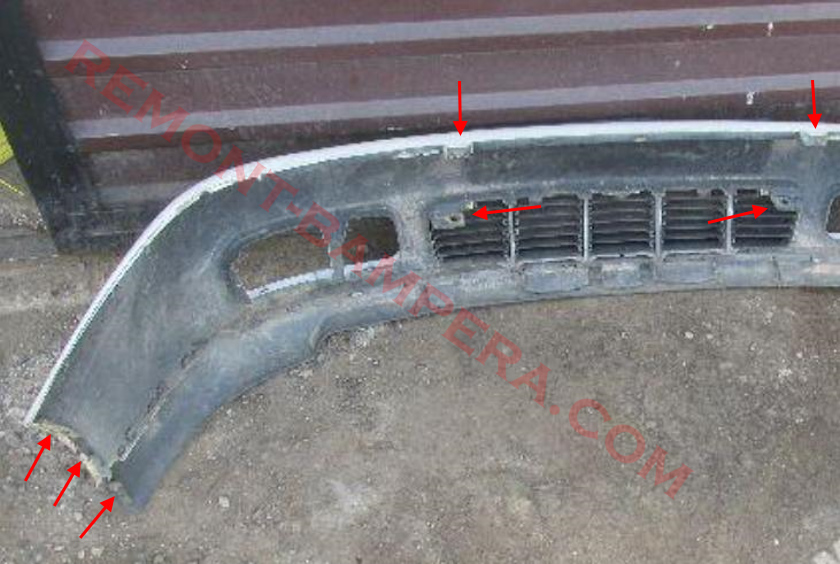

front bumper attachment points VW Caddy (1995-2004)

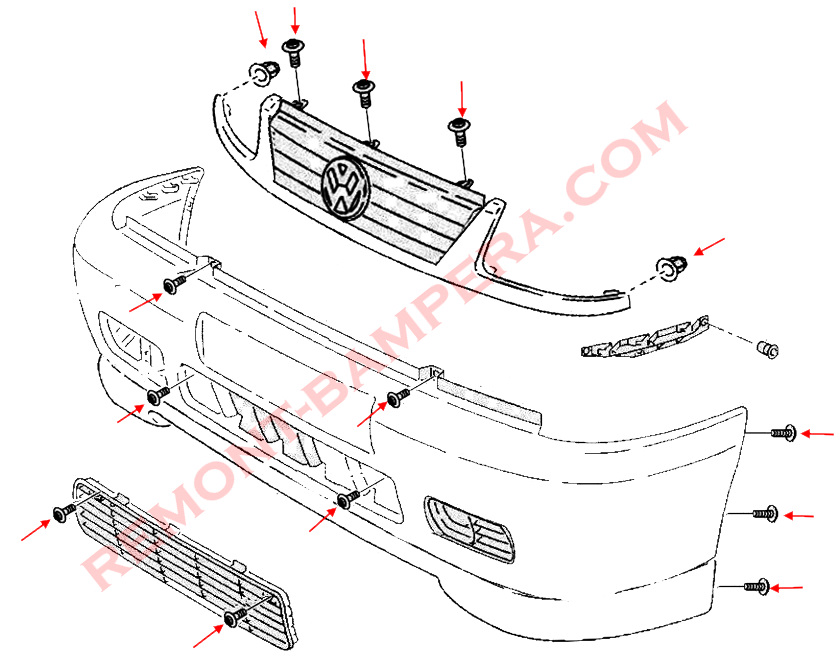

VW Caddy Grille Mounting Diagram (1995-2004)

Front bumper mounting diagram VW Caddy (1995-2004)



Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-open the trunk lid (doors).

-Unscrew three screws on each side in the wheel arches.

- (if any) unscrew the screw from the bottom side.

-Unscrew the four screws (between the bumper and the body) that secure the bumper to the amplifier.

-pulls the bumper off the rails in the fenders (look behind the wires).

-disconnect the connectors of the electrical equipment (if any).

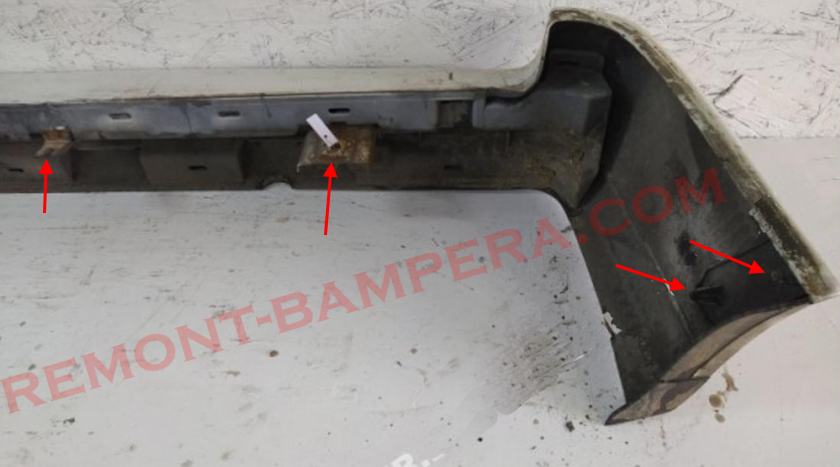

rear bumper attachment points VW Caddy (1995-2004)

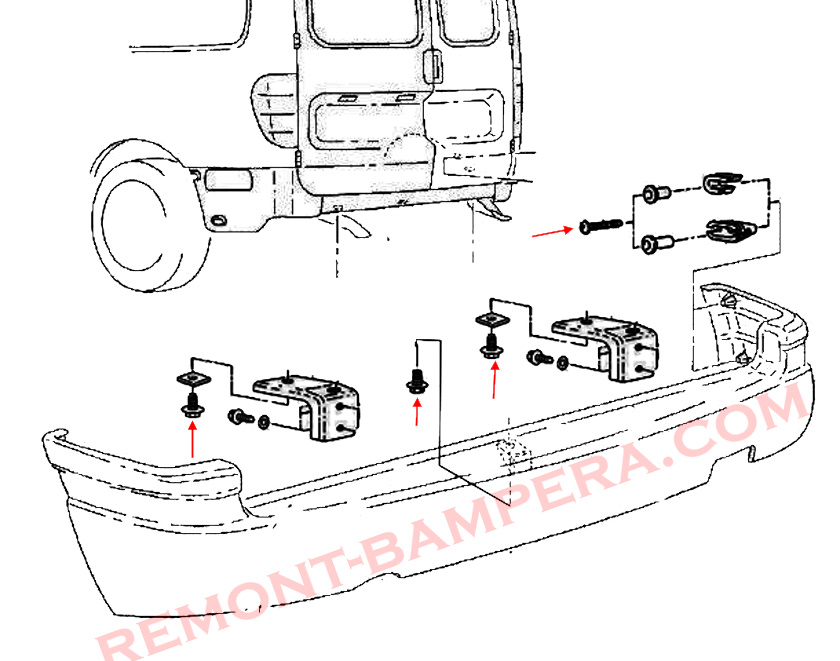

Rear bumper mounting diagram VW Caddy (1995-2004)

Rear bumper mounting diagram VW Caddy (1995-2004)
