Front bumper

Depending on the year of manufacture and the type of model, the mounting locations may vary.

-wrenched the wheel to the side depending on which side will disassemble the first.

-wheel arches wrenched the screws that attach the fender liner.

-wheel arches detachable lining at fixing the bumper.

-Unscrew the screws for the plates.

-Unscrew the four screws at the bottom front (spun up).

-Unscrew the two screws under the hood at the corners of the grille (can be three).

-with the assistant pulling the edge of the bumper to the sides, tearing off the latches, and pulls it forward from the rails.

-remove connector from the PDC (if any).

-disconnect hose of headlight washer system (if any). To from the reservoir was leaking fluid, you will need to drown out the hoses or tubes to bend.

-remove the connector from the fog lamp (if any).

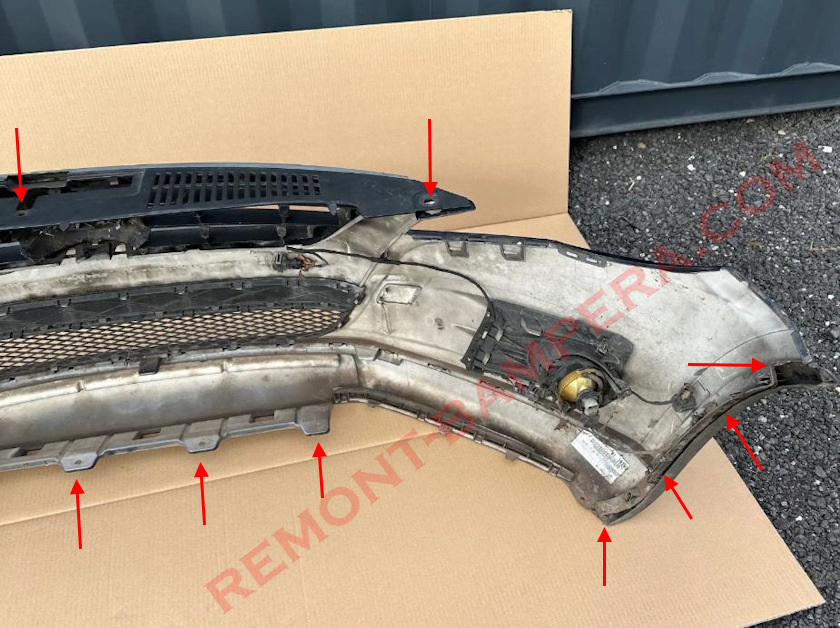

the attachment of the front bumper VW TIGUAN

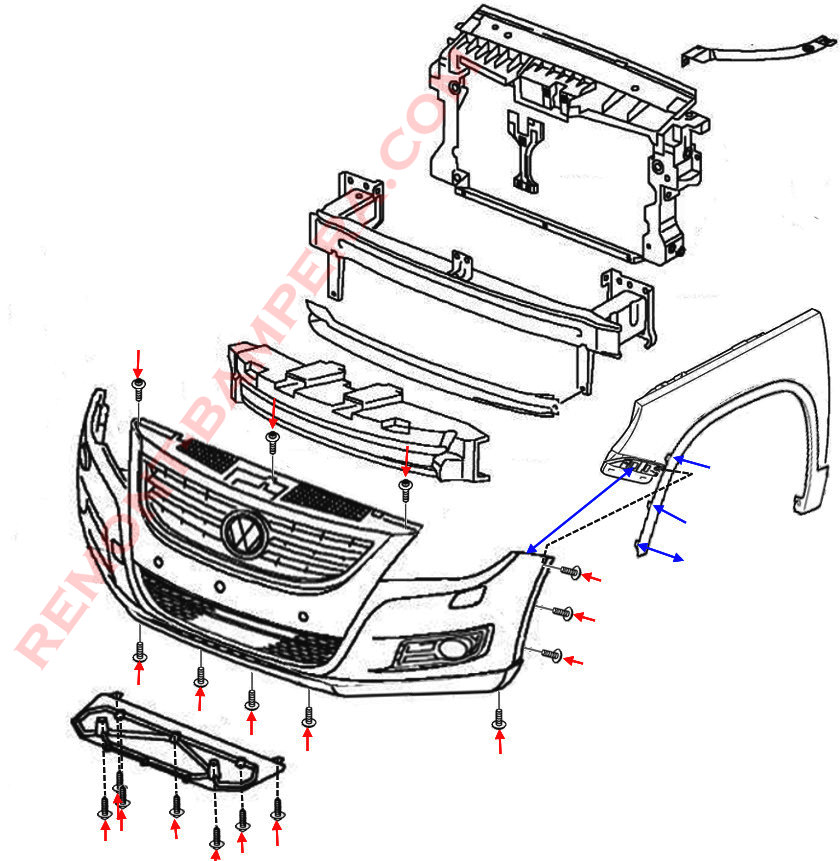

the scheme of fastening of the front bumper VW TIGUAN

Rear bumper

-Unscrew the screws and take out the rivets in the wheel wells that secure the bumper to wheel arch liners and pads (to remove the wheels, loosen the ratchet with a nozzle).

-Unscrew the screws and take out the caps on the perimeter in the bottom (spun up).

-remove the license plate frame.

-Unscrew the two screws under the license plate frame.

-Unscrew two screws each side in the doorway of the trunk near the tail lights.

-With an assistant, pull the bumper back from the guides.

-remove the connectors from the lighting.

-remove connector from the PDC (if any).

the attachment of the rear bumper VW TIGUAN

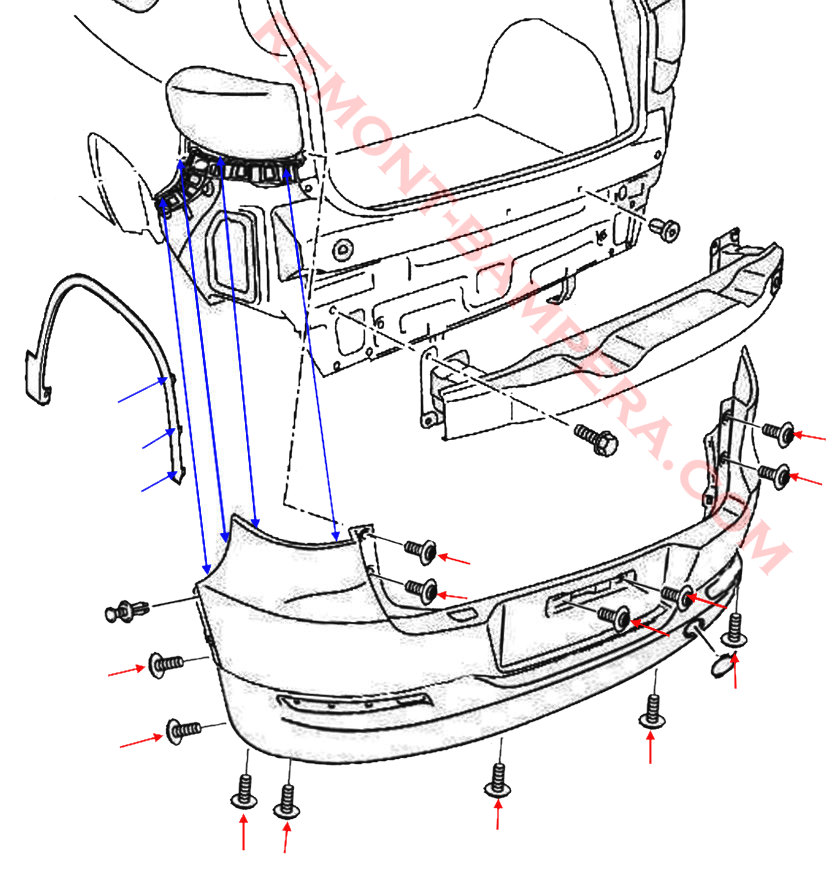

diagram of rear bumper VW TIGUAN
