Front bumper

-Unscrew the wheel to the left or right side, depending on which side of the bed will be dismantled.

-wheel arches Unscrew the screws that attach the fender liner to the bumper.

-Unscrew the screws that attach the bumper to the wings (spun upwards).

-open the hood and Unscrew the four screws that secure the grille.

-pulls off the grill with latches in front in the course of the car

-in the lower part, along the entire length Unscrew the seven screws which secure the protection of the engine and wing flaps.

-rip off the bumper with clips (the edges pull away from the car) and pulls in the front (need to do this with a helper so as not to scratch the paint on the wings).

-you can now unplug the connectors from the fog lights (if any).

-remove connector from the PDC (if any).

- if there is paramilitary disconnect the hoses from the injectors and close them with stoppers that from the reservoir was leaking fluid.

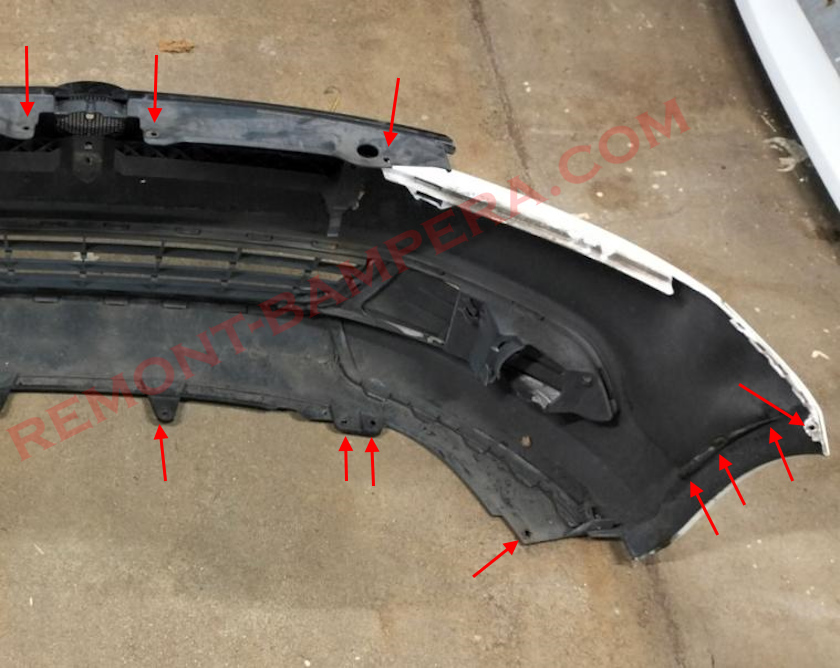

the attachment of the front bumper of VW JETTA 6

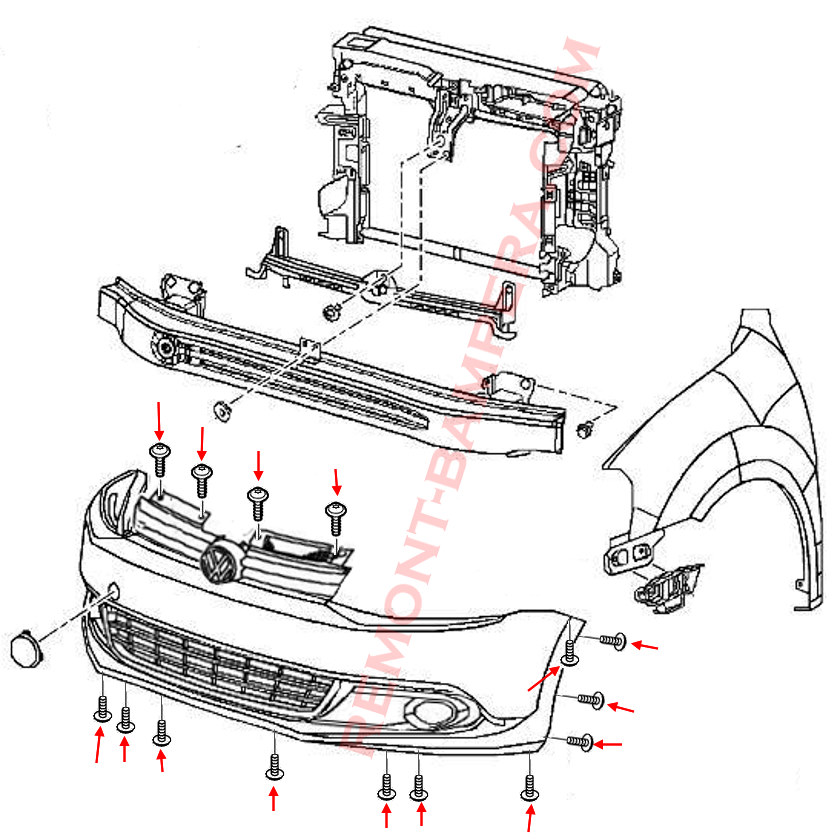

the scheme of fastening of the front bumper of VW JETTA 6

Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-wheel arches Unscrew the screws that attach the fender liner to the bumper (so as not to remove the wheels, you can use a ratchet with a nozzle).

-In the corners, Unscrew one screw on each side that attach the bumper to the wings (spun upwards).

-Unscrew the screws (spun upwards) and get the caps on the perimeter in the lower part of the bumper.

-now you need to access the inner part of the rear lights. In the boot remove the side trim, Unscrew mounting nuts and remove the tail lights.

-under the rear lights detachable latches.

-rip off the bumper with clips (the edges pull apart) and pulls back (it should be done with the assistant, so as not to scratch the paint on the wings).

-remove connector from the PDC (if any).

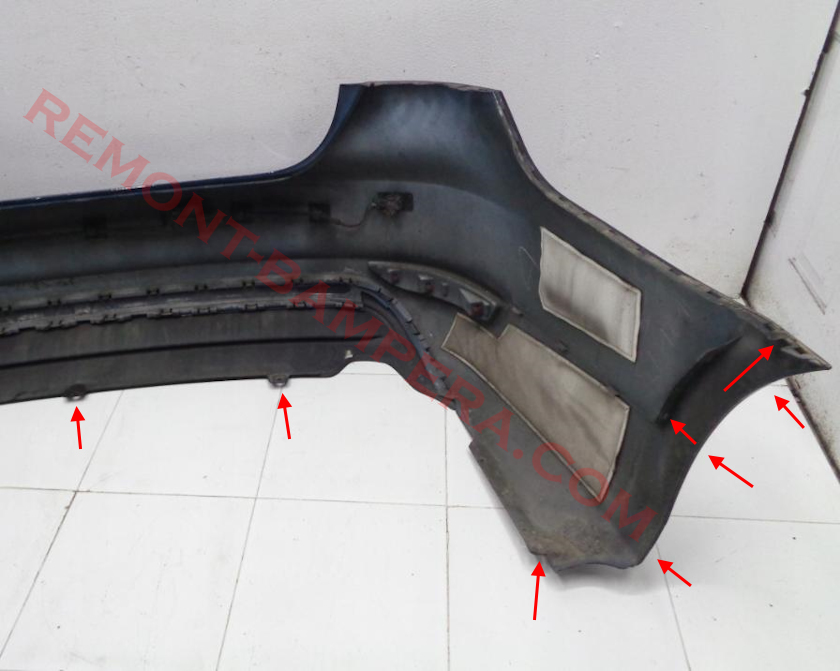

the attachment of the rear bumper for VW JETTA 6

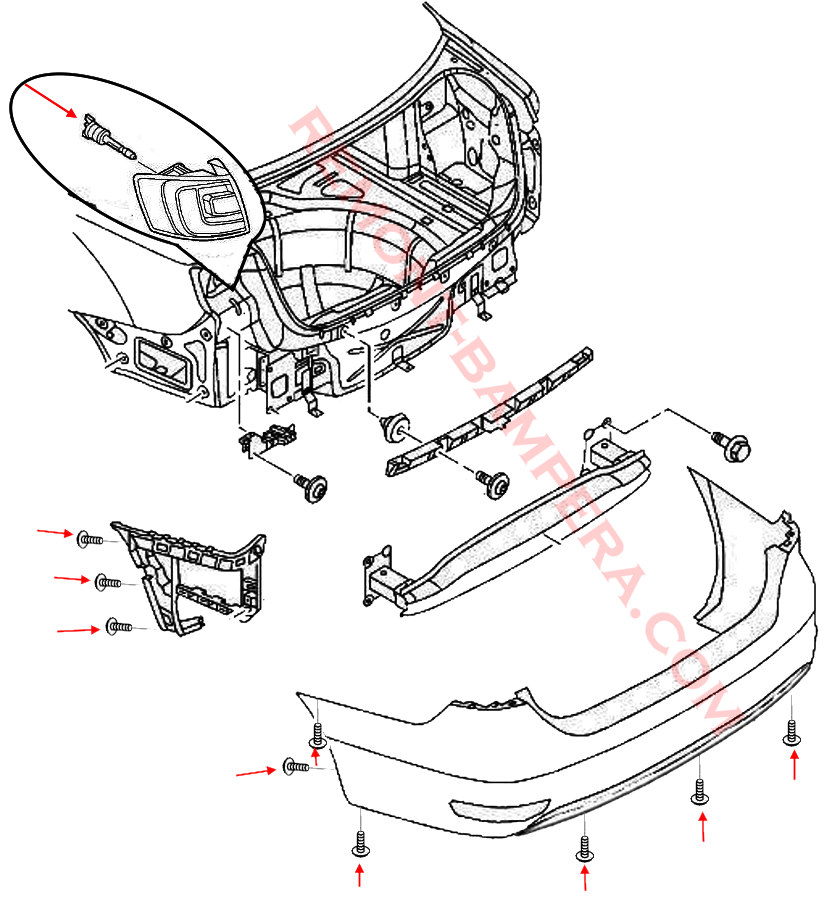

diagram of rear bumper VW JETTA 6
