Front bumper

Depending on the model year and version of the model the attachment is different.

-under the hood, Unscrew two screws and remove the cover battery.

-Unscrew the two screws and remove the cover over the right headlight.

-from top to Unscrew the screws and remove the grille.

-Unscrew the screws that attach the top part of the bumper to the radiator frame.

-under the lights removable lining (keep latches).

-under the covers Unscrew two screws on each side.

-Unscrew the wheel to the left or right side, depending on which side of the bed will be dismantled.

-wheel arches Unscrew the screws that attach the fender liner to the bumper.

-move the wing flaps to the side and Unscrew one screw on each side that attach the bumper to the wings (spun up) and one screw on each side. Holding the brackets.

-also the lockers Unscrew two nuts on each side that attach the bumper to the wings (need head with extension).

-Unscrew the screws at the bottom (spun up).

-with the assistant pulls the bumper forward, in the direction of motion.

-remove the connectors from the fog lights (if any).

- if there is paramilitary, disconnect the hose and plug the cap to the reservoir was leaking fluid.

-remove connector from the PDC (if any).

scheme of fastening of the radiator grille VW T5 (Transporter, Caravelle, Multivan)

scheme of fastening of the radiator grille VW T5 (Transporter, Caravelle, Multivan)

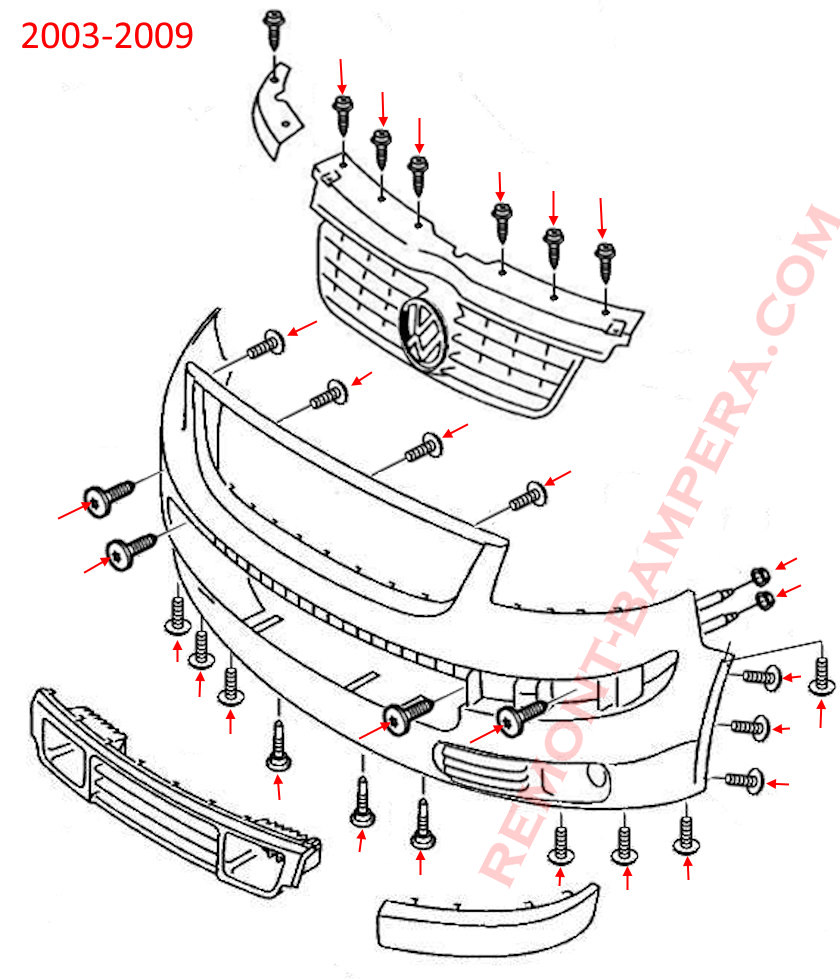

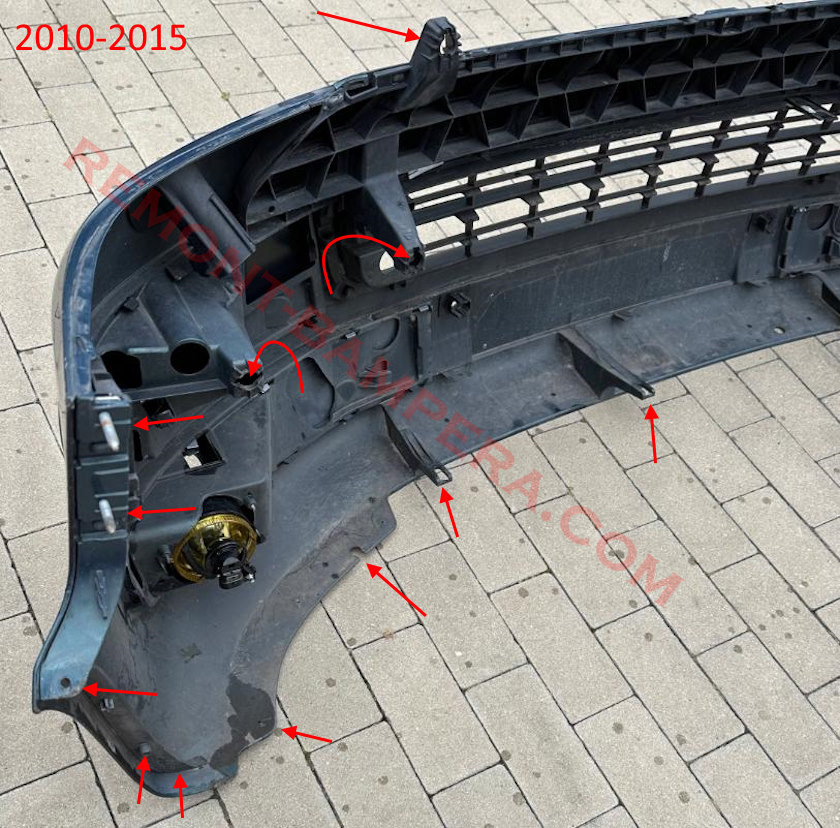

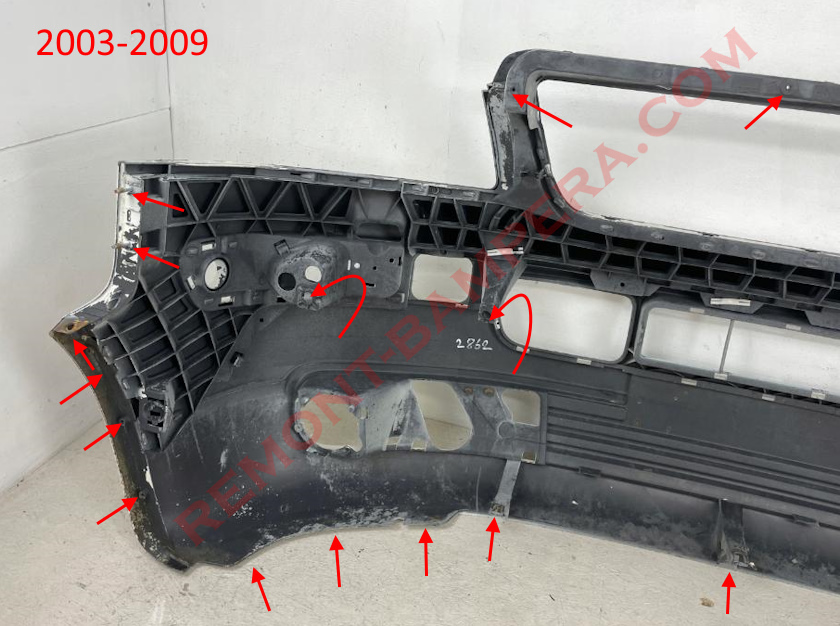

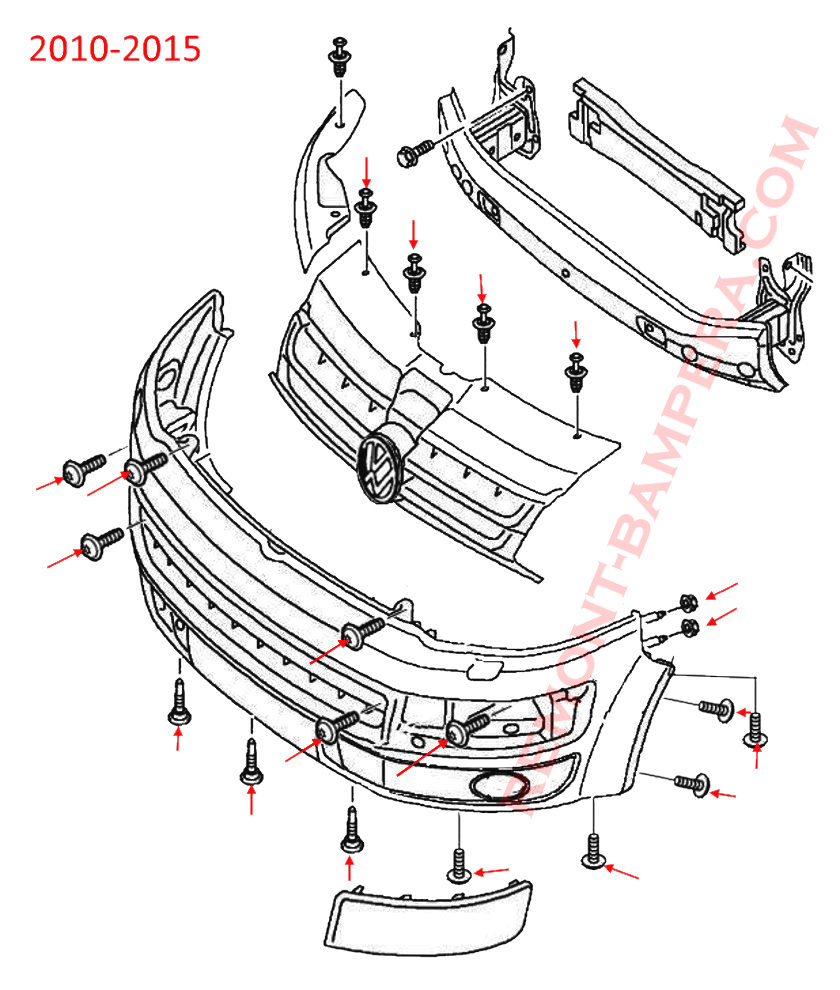

the scheme of fastening of the front bumper VW T5 (Transporter, Caravelle, Multivan)

Rear bumper

Depending on the model year and version of the model the attachment is different.

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-remove tail lights.

-the rear lights take out two pistons on each side, and pulls up the side lining.

-under the lining pulls out four pistons on each side and remove upwards holders.

-under holders take out two pistons on each side.

-wheel arches Unscrew the screws that attach the fender liner to the bumper.

-move the wing flaps to the side and Unscrew one screw on each side.

-take out the caps along the entire length at the bottom of the bumper (inserted from the bottom up).

-with the assistant pulls the bumper from the guides themselves.

-remove connector from the PDC (if any).

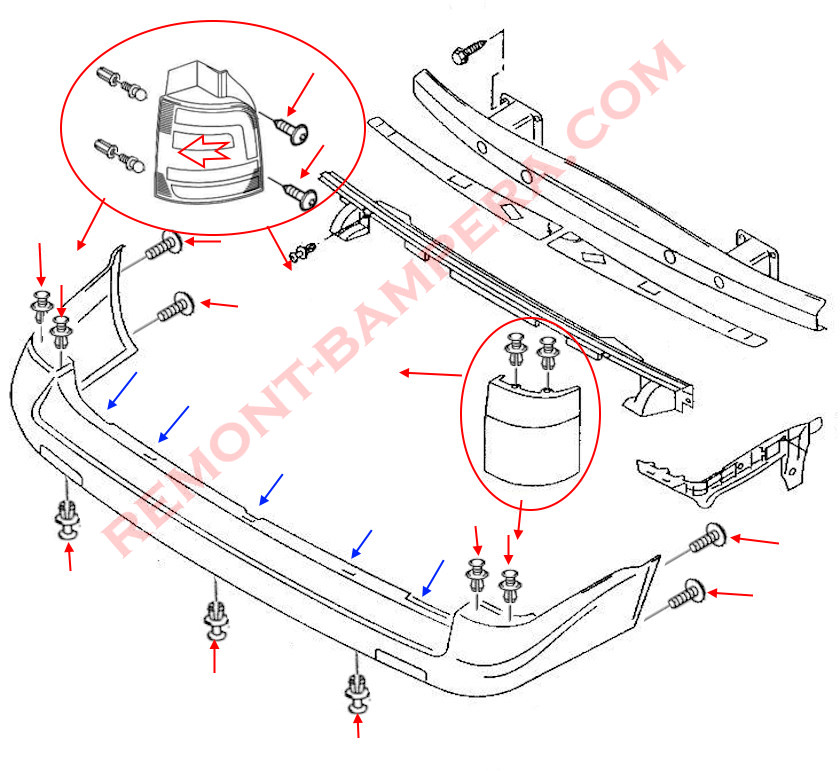

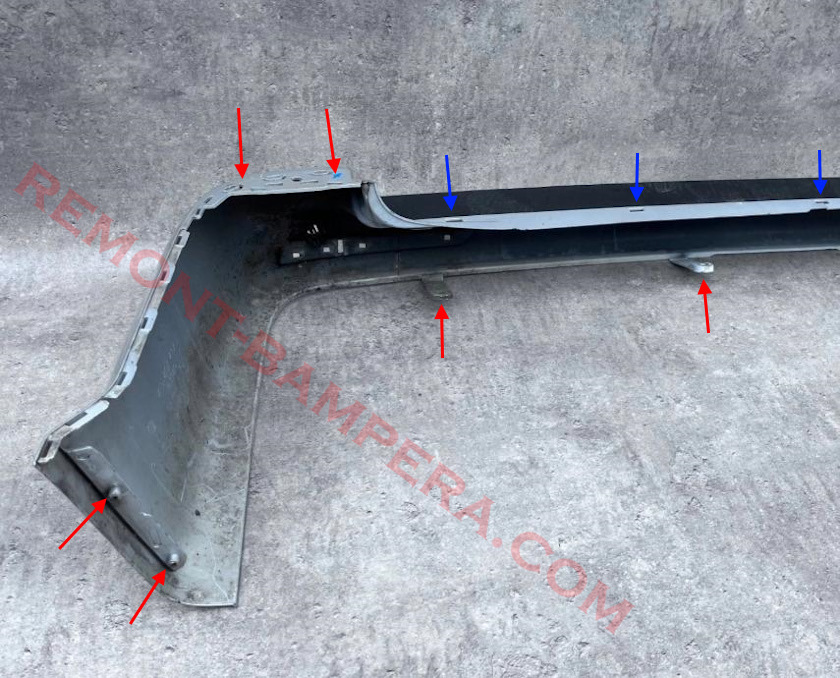

diagram of rear bumper VW T5 (Transporter, Caravelle, Multivan)
