Front bumper

Depending on the year attachment locations can vary.

In the VW TOUAREG up to 2006 first you need to remove the grille after the grille 2006 removed along with the bumper.

Until 2006.

-using a thin screwdriver remove the logo from the grille (you need to pry from the bottom).

-under the emblem Unscrew the screw.

-using a flat screwdriver, release the upper part of the grille from the four latches.

-swipe unlock four latches at the bottom and remove the grille itself.

-Unscrew the three screws under the grille and one in the corners near the headlights.

-Unscrew the four screws in the front lower part.

-wrenched the wheel to the side depending on which side will disassemble the first.

-in the wheel arches to turn out the screws holding the wheel arch liners and bumper.

-assistant free the bumper from the clips under the headlights and pulls it forward from the rails.

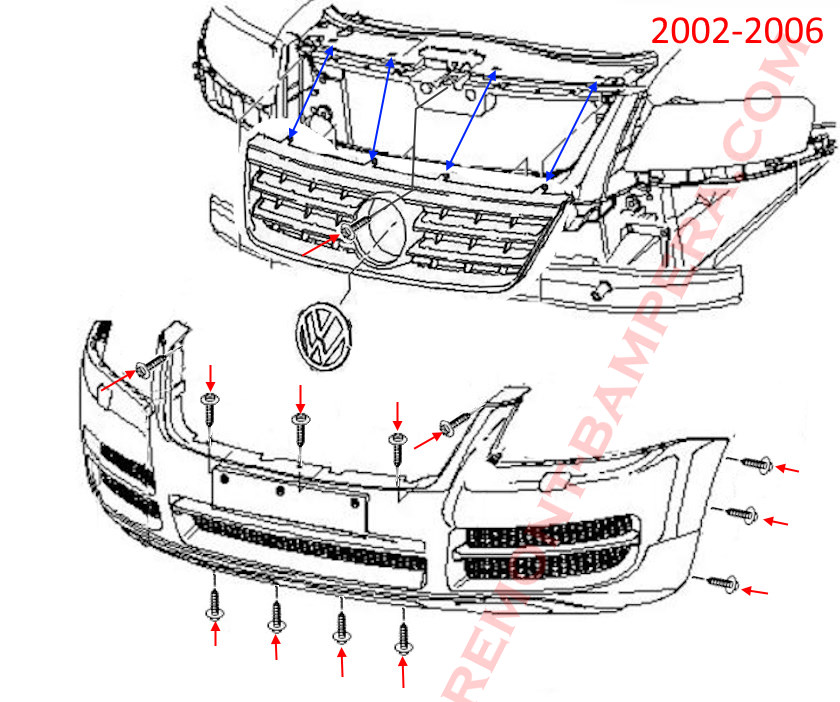

scheme of fastening of the radiator grille VW TOUAREG

the scheme of fastening of the front bumper of the VW TOUAREG

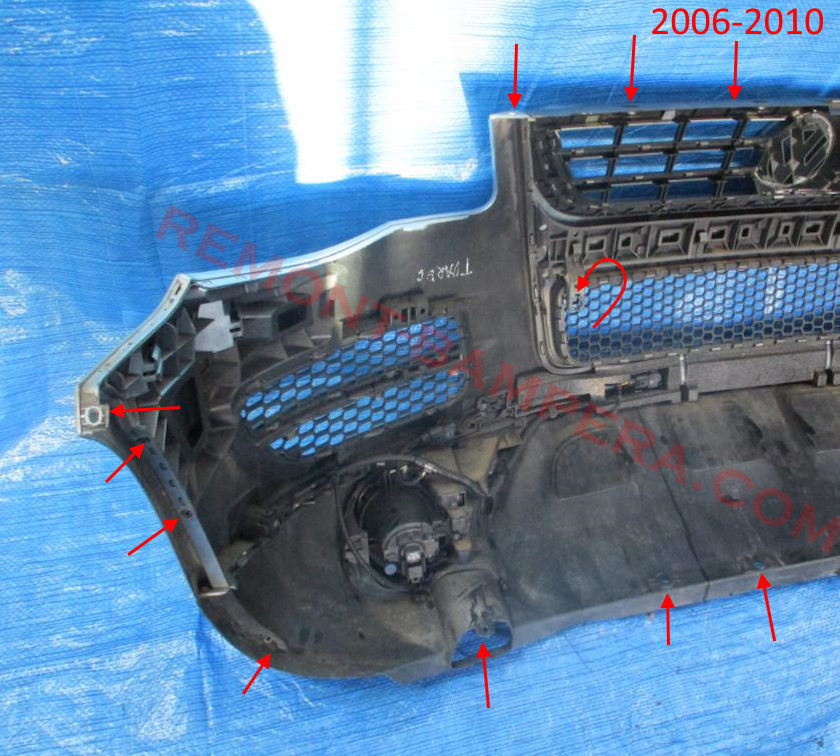

After 2006.

-under the hood, Unscrew the six screws (spun down).

-wrenched the wheel to the side depending on which side will disassemble the first.

-wheel arches wrenched the screws that attach the fender liner and the bumper, move the wing flaps to the side and Unscrew one screw at the top corners ( spun up).

-Unscrew the screws at the bottom (spun up).

-Unscrew the screws on the corners of the Central grille.

-with the assistant pulls the bumper forward from the rails.

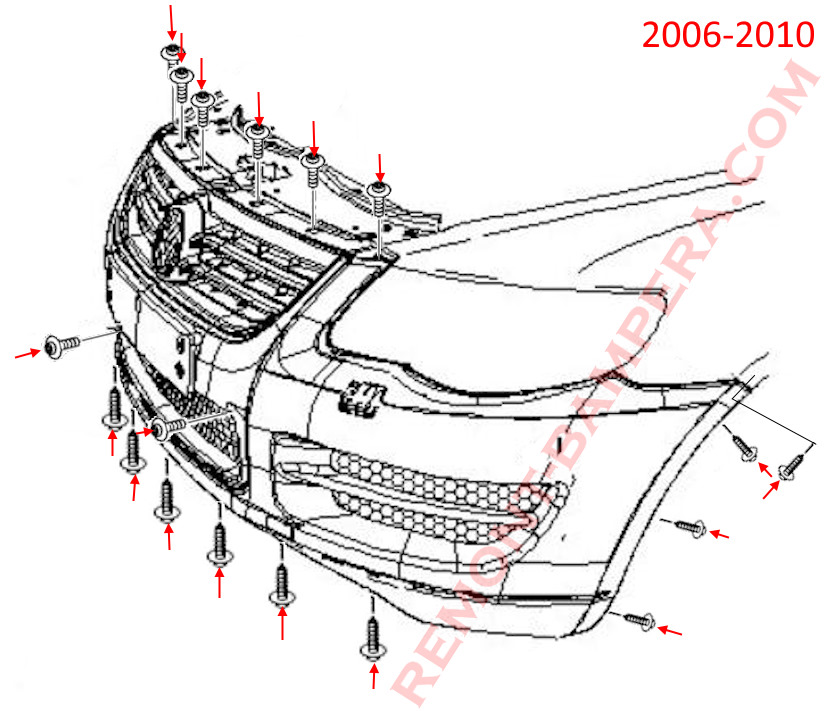

 the scheme of fastening of the front bumper of the VW TOUAREG

For all the years.

-remove connector from the PDC (if any).

-remove the connector from the fog lamp (if any).

-if there is paramilitary, disconnect hoses and close them with stoppers that from the reservoir was leaking fluid

Rear bumper

-in the boot remove the side trim (you need to access the rear part of the rear lights).

-under the panels, Unscrew the screws and remove the tail lights.

-under the rear lights Unscrew two screws on each side (twisted upside down).

-Unscrew the screws at the bottom (spun up).

-Unscrew the screws in the wheel arches (not to remove the wheel, remove ratchet with a nozzle).

-With an assistant, pull the bumper back from the guides.

-remove the connectors from the lighting.

-remove connector from the PDC (if any).

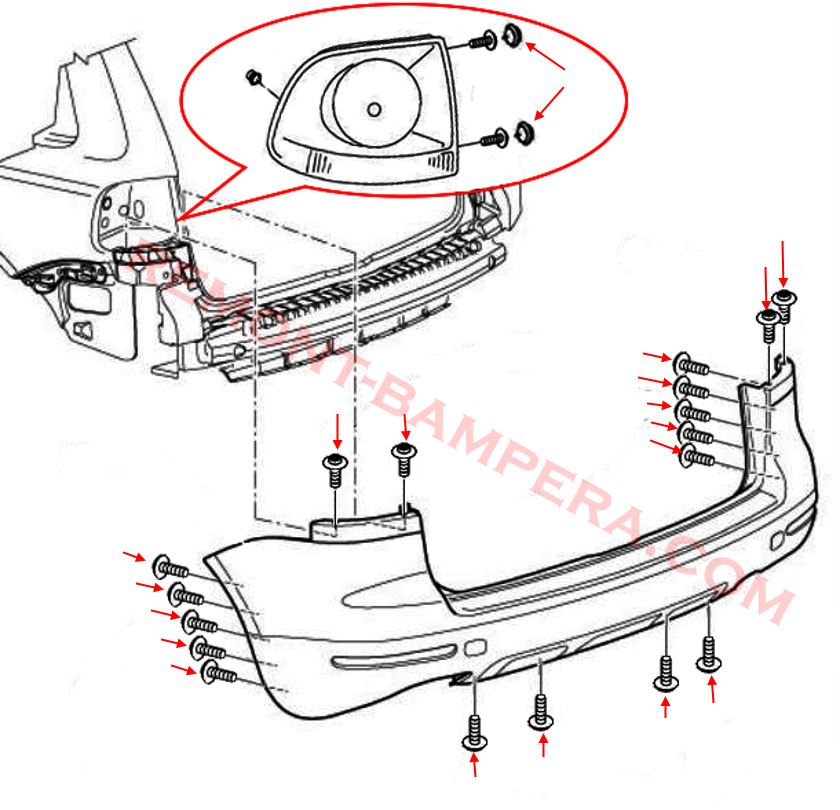

the scheme of fastening the rear bumper of the VW TOUAREG
