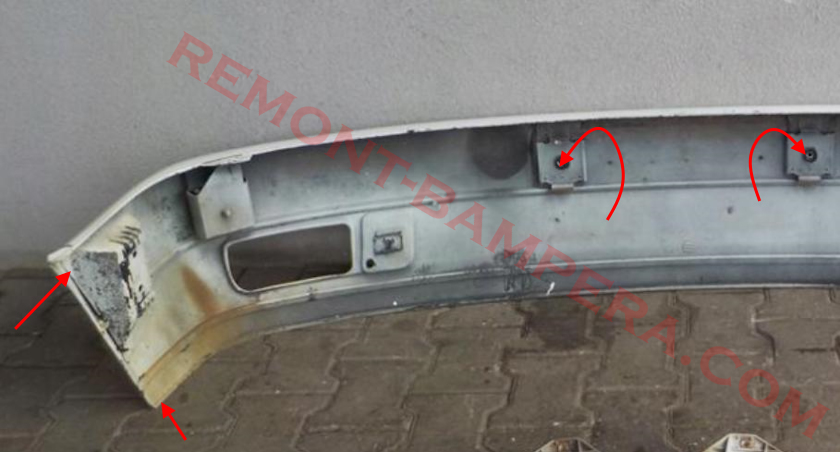

Front bumper

Depending on the model year and version of the model the attachment is different.

-remove license plate and frame.

-under frame pull out the plugs and Unscrew the two bolts.

-after ' 96 can stand the screw in the center of the wheel arches.

-with the assistant pulls the bumper from the guides forward facing.

-remove the connectors from the fog lights (if any).

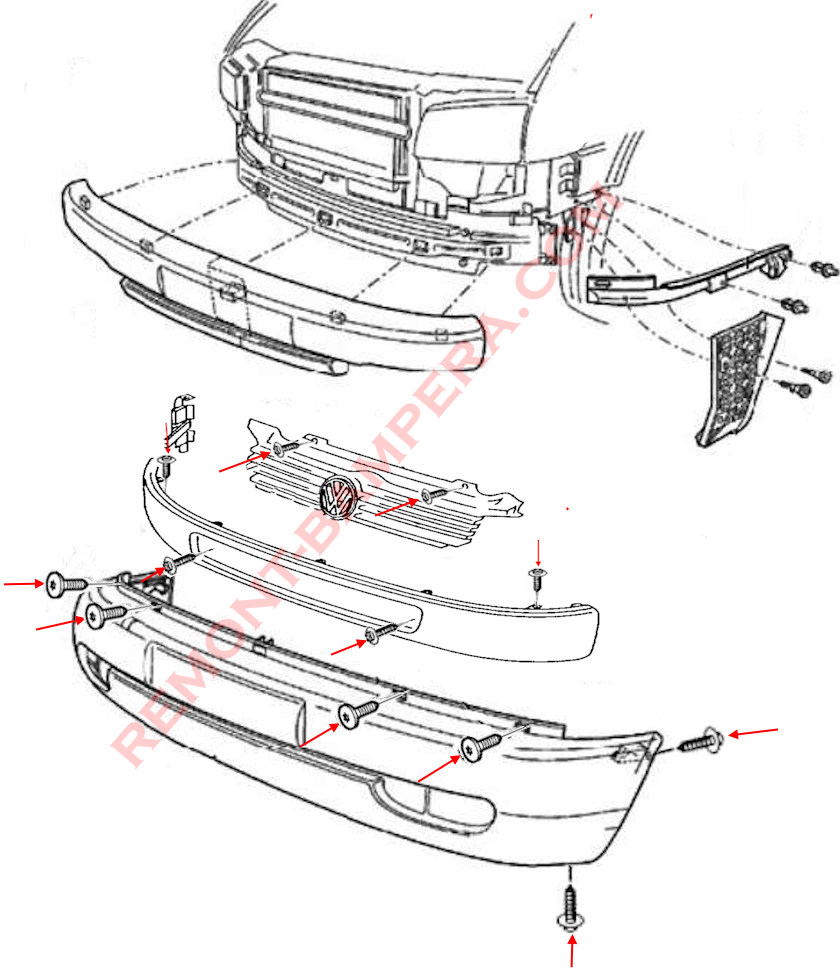

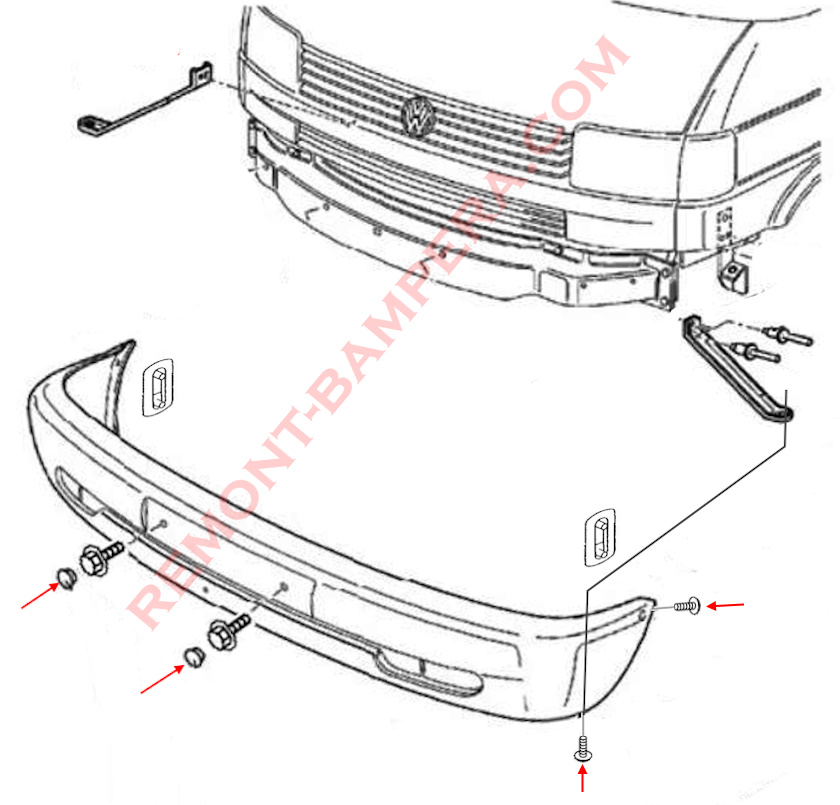

the scheme of fastening of the front bumper VW T4 Transporter, Caravelle, Multivan

the scheme of fastening of the front bumper VW T4 Transporter, Caravelle, Multivan

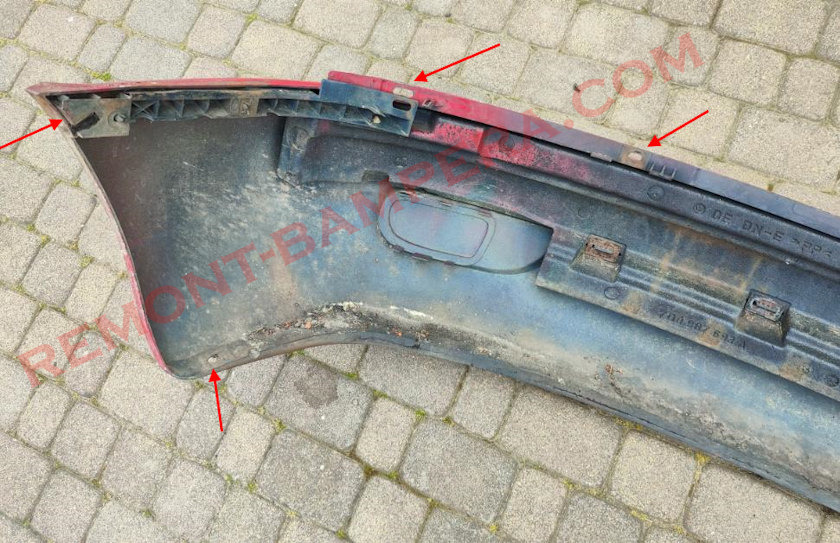

Rear bumper

Depending on the model year and version of the model the attachment is different.

-under the trunk lid pull out the plugs and Unscrew the bolts.

-Unscrew the two bolts at the bottom (spun up).

From ' 95:

-Unscrew the screws around the edges at the bottom of the bumper (spun up).

-Unscrew the screws in the wheel arches in the top corners.

-Unscrew two bolts on each side that attach the bumper reinforcement to the side members.

-with the assistant pulls the bumper from the guides together with the amplifier itself.

-remove connector from the PDC (if any).

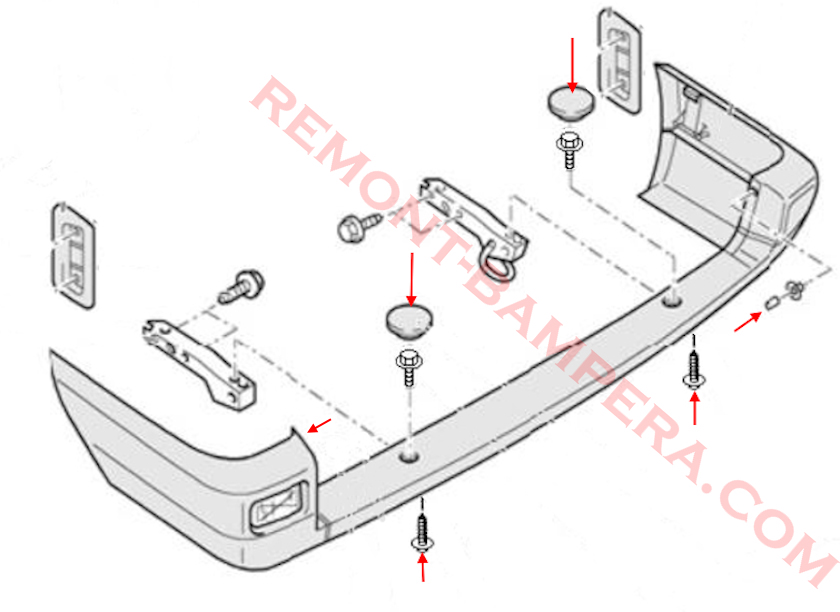

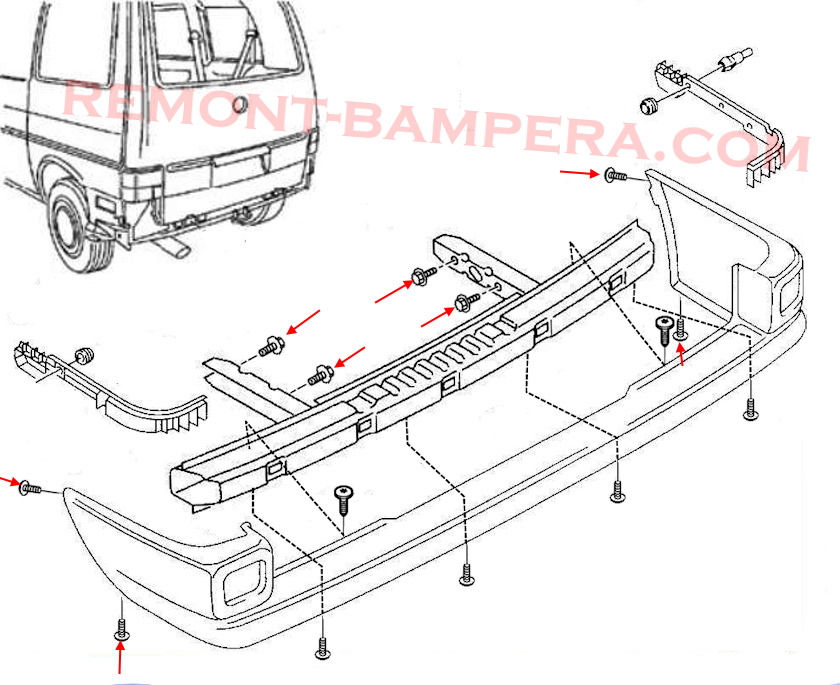

diagram of rear bumper VW T4 Transporter, Caravelle, Multivan

diagram of rear bumper VW T4 Transporter, Caravelle, Multivan
