Front bumper

Depending on the year attachment locations can vary.

-turn wheels to the side and Unscrew the screws that attach the fender liner to the bumper.

-move the wing flaps to the side and Unscrew one screw on each side in the corners (spun up).

-Unscrew the five screws in the bottom (spun up).

-under the hood, Unscrew the three screws m remove the grille (the bottom part pulls out in front of the latch).

-under the grill, peel the bumper with a flat head screwdriver latches (indicated in black arrows).

-with the assistant pulls edge out to the side and pulls the bumper forward from the rails.

-you can now unplug the connectors from the fog lights (if any).

-remove connector from the PDC (if any).

-disconnect hose of headlight washer system (if any).To from the reservoir was leaking fluid, you will need to drown out the hoses or tubes to bend.

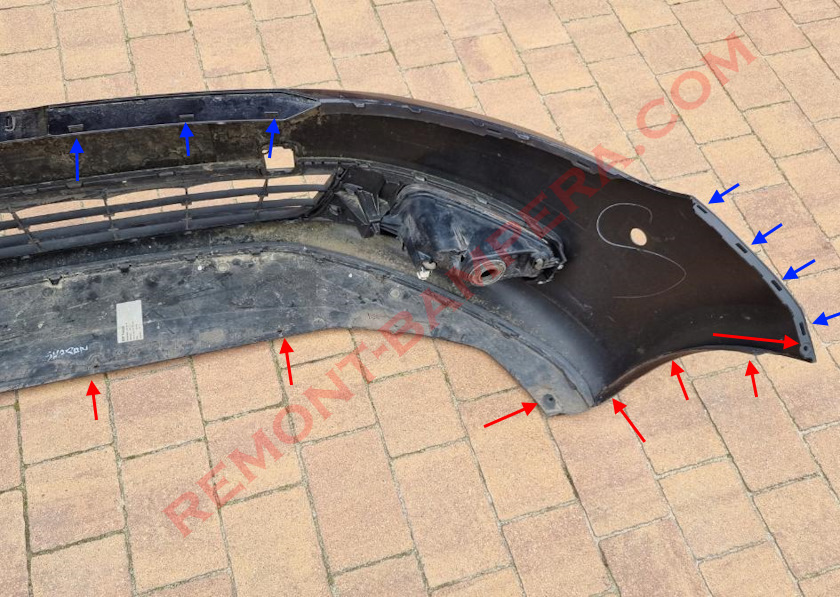

the attachment of the front bumper VW Sharan (after 2010)

scheme grille radiator VW Sharan (after 2010)

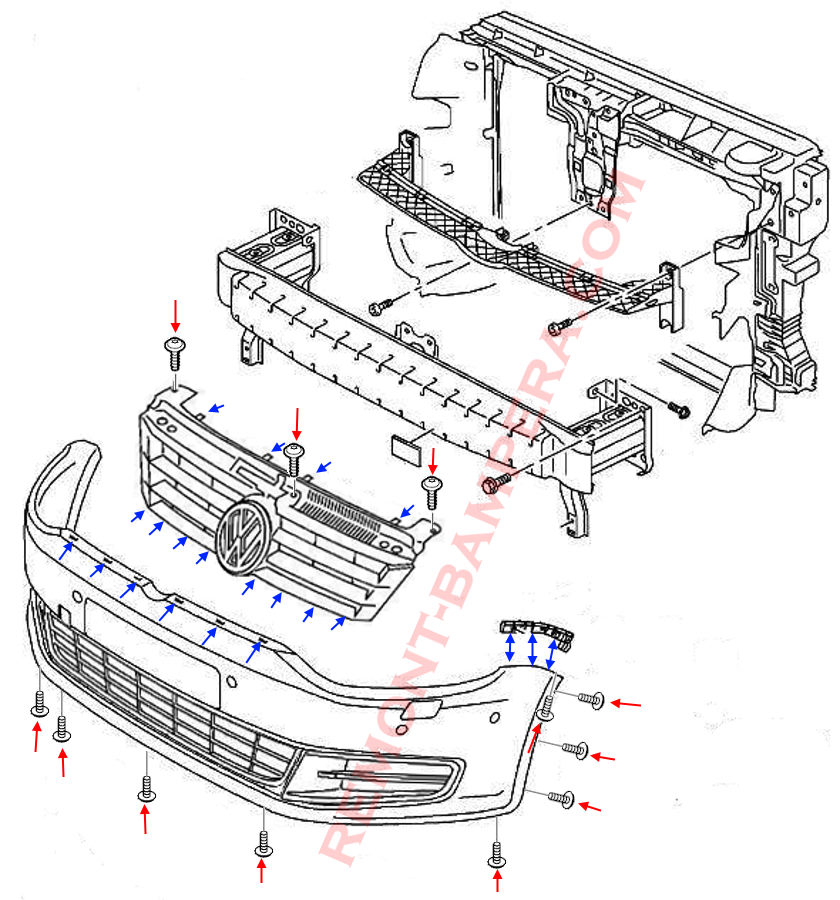

the scheme of fastening of the front bumper VW Sharan (after 2010)

Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-in the trunk, on the side, remove the hatches. Under the hatch remove the cap, under the plugs, Unscrew the screws fixing the rear lights.

-remove tail lights.

-under the rear lights Unscrew two nuts on each side (twisted upside down).

-Unscrew the five screws in the bottom (spun up).

-Unscrew the screws in the wheel arches(not to remove the wheel, remove ratchet with a nozzle).

-for wheel arch liners Unscrew one screw on each side at the corners (spun up).

-With an assistant, pull the bumper back from the guides.

-remove connector from the PDC (if any).

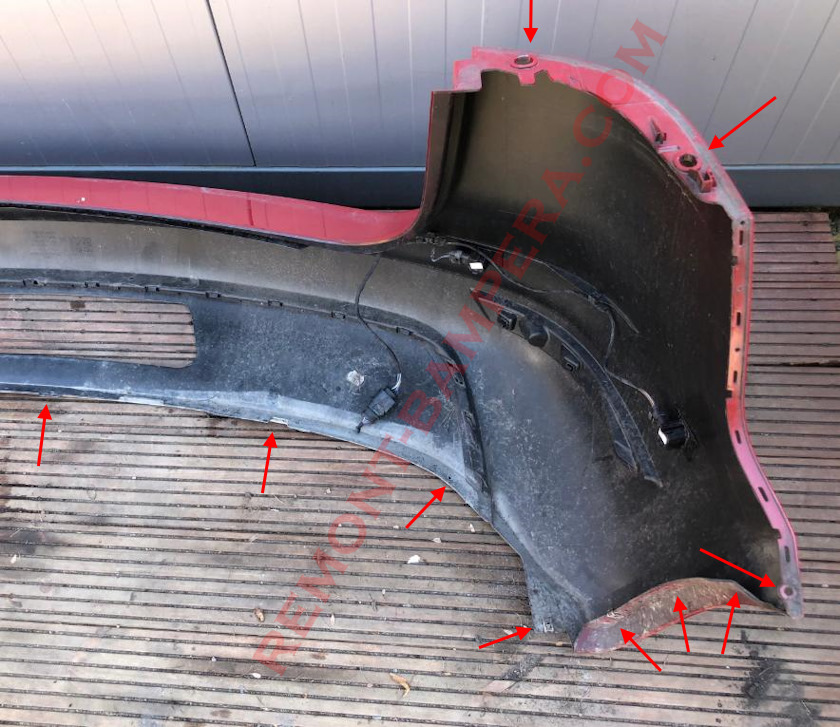

the attachment of the rear bumper VW Sharan (after 2010)

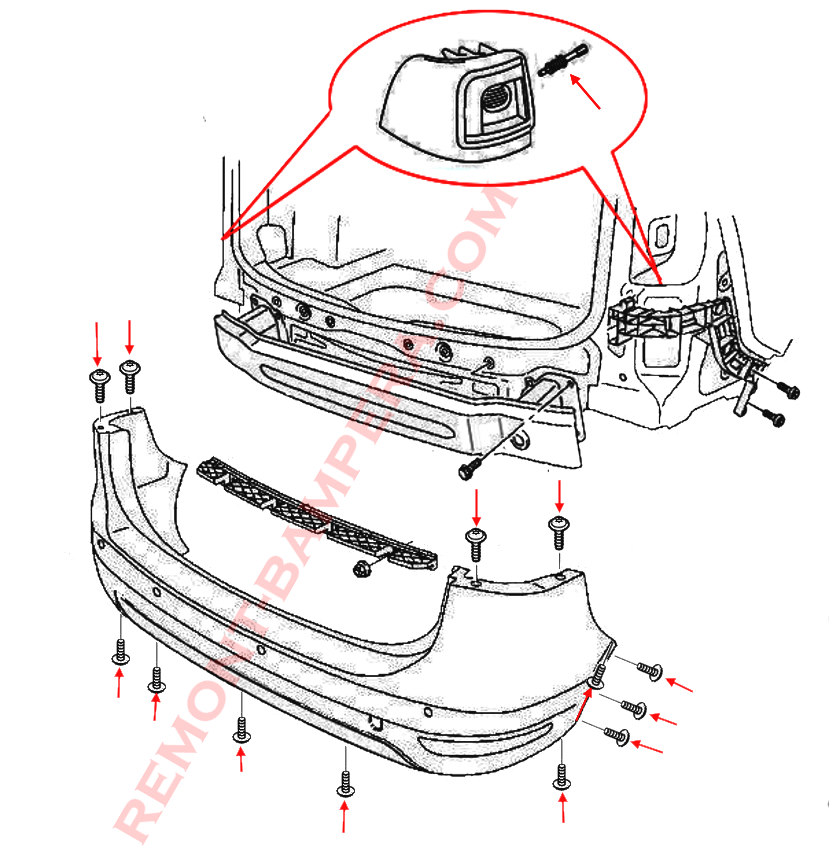

diagram of rear bumper VW Sharan (after 2010)
