Depending on the year the site of attachment may vary slightly.

Front bumper

-open the hood.

-under the hood take out the six rivets that attach the upper part.

-from the bottom Unscrew the three screws that secure protection.

-depending on which side we will disassemble, wrenched the wheel.

-wheel arches Unscrew two screws on each side holding the fender liner to the bumper.

-we release the latch in the wings (pull the corners themselves) and under the headlights.

-with the assistant pulls the bumper forward (don't want to break the wires).

-snap together the connectors of the equipment (if any).

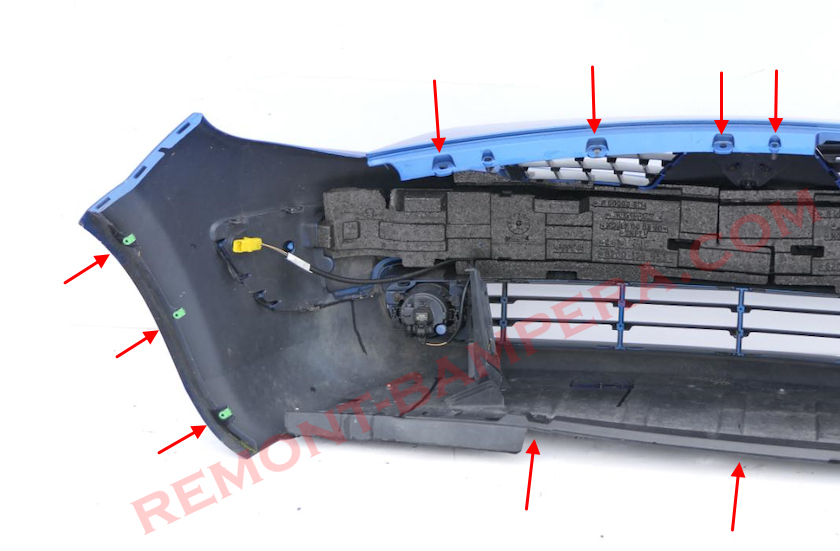

The attachment of the front bumper Renault Scenic 2 (2003-2009)

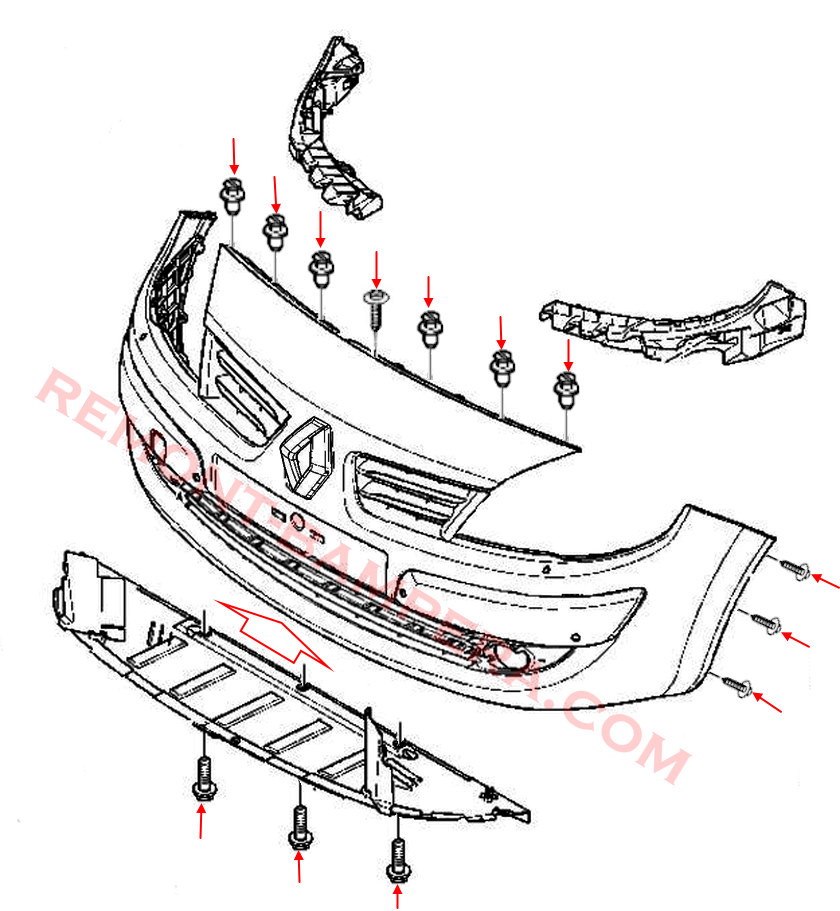

The scheme of fastening of the front bumper Renault Scenic 2 (2003-2009)

Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-open the trunk lid.

-Unscrew two screws each side and pull themselves rear lights.

-the rear lights take out two pistons.

-in the opening of the trunk, Unscrew four screws, take out on itself, stops the boot lid and Unscrew the screws under them.

-wheel arches Unscrew the screws that attach the fender liner to the bumper.

-from the bottom Unscrew the six screws (spun up).

-we release the latch in the wings (pull the corners themselves).

-with the assistant pulls the bumper backwards (look for wires).

-snap together the connectors of electrical equipment.

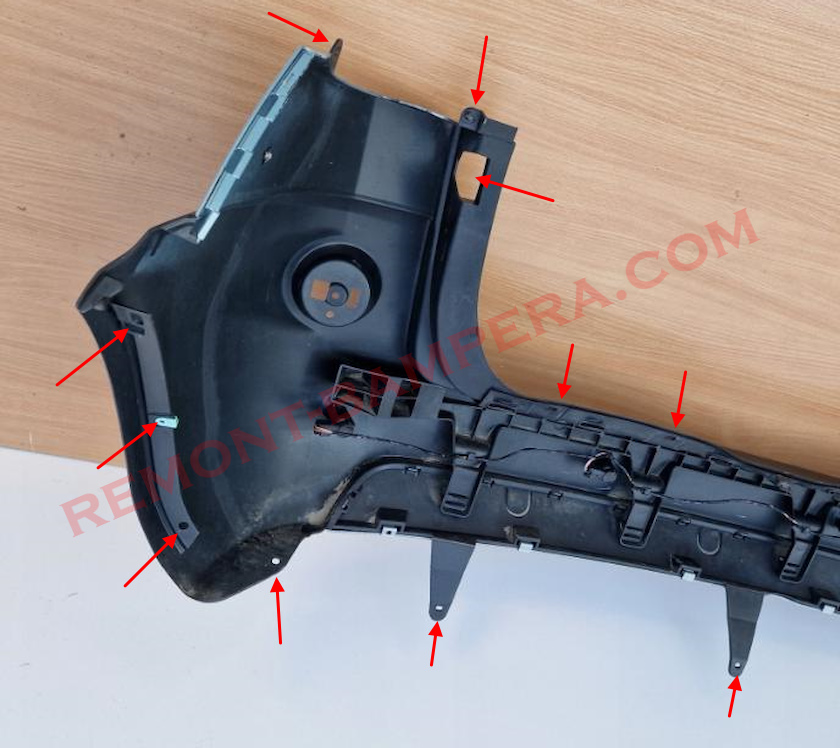

The attachment of the rear bumper Renault Scenic 2 (2003-2009)

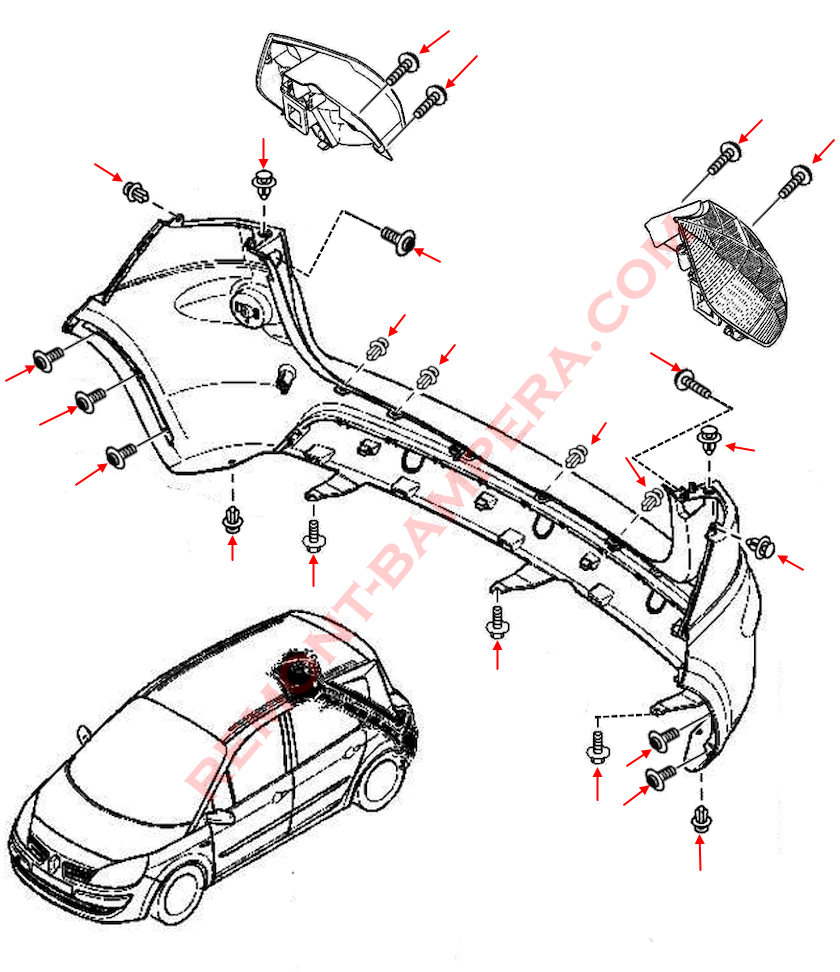

Scheme of fastening of a back bumper Renault Scenic 2 (2003-2009)
