Depending on the year of release of attachment is different.

Front bumper

-open the hood.

-under the hood, Unscrew the six screws (spun down) that secure the upper part.

-from the bottom Unscrew the seven screws that secure protection.

-depending on which side we will disassemble, wrenched the wheel.

-wheel arches Unscrew two screws on each side holding the fender liner to the bumper.

-(may not be, depends on year of production) shifts the wing flaps to the side and Unscrew one screw on each side holding the bumper corners to the wings.

-we release the latch in the wings (pull the corners over), if the latches do not go need to push them through the gap between the bumper and the fender with a flat head screwdriver.

-with the assistant pulls the bumper forward (don't want to break the wires and hoses).

-snap together the connectors of the equipment (if any).

-disconnect the hoses to the headlight washers (if any).

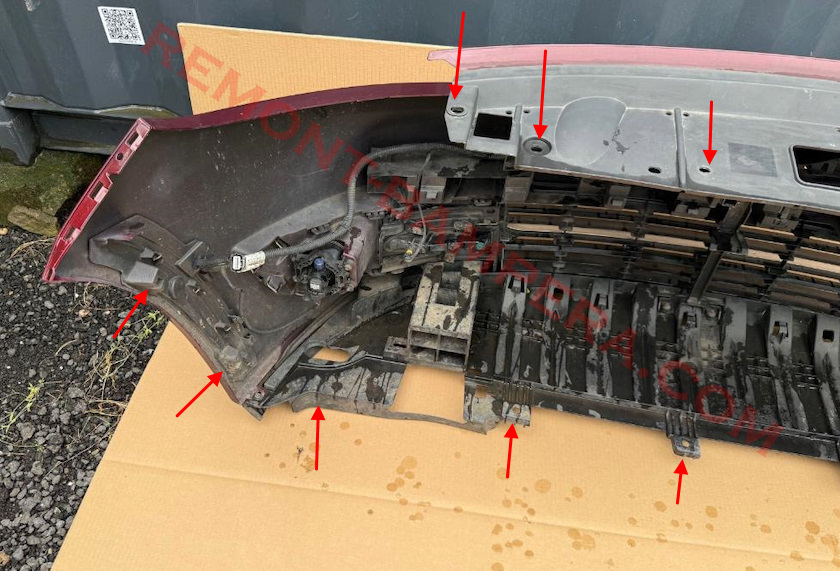

The attachment of the front bumper Renault Scenic 3 (2009-2015)

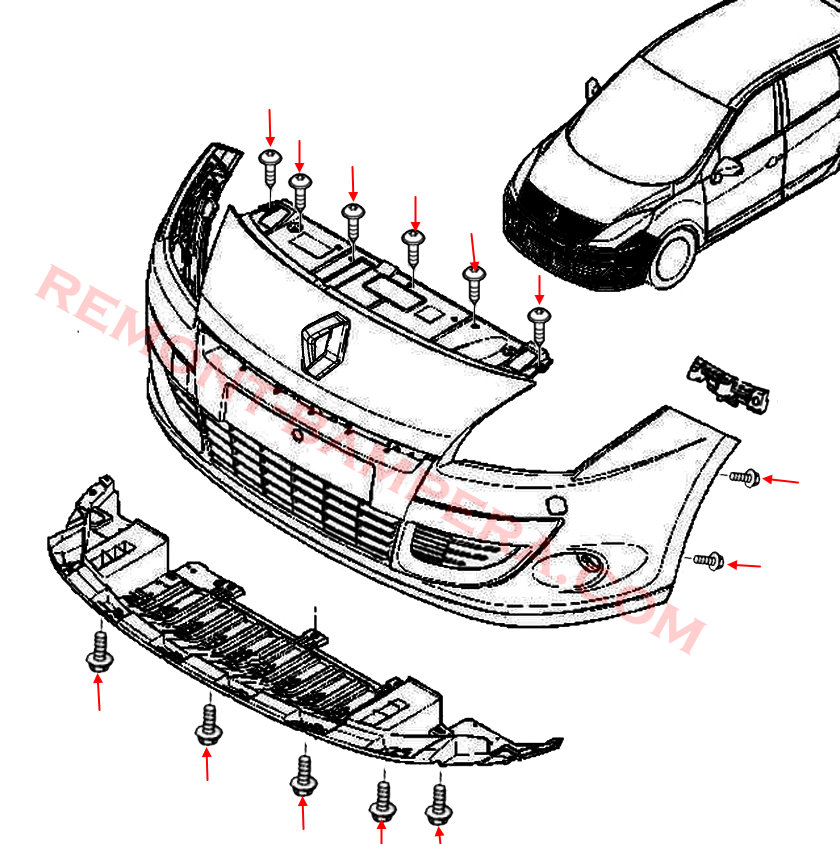

The scheme of fastening of the front bumper Renault Scenic 3 (2009-2015)

Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-open the trunk lid.

-Unscrew two screws each side that attach the rear lights.

-(Grand Scenic) to the side panels of the trunk opening hatches and Unscrew the screws under them.

-remove tail lights.

-the rear lights take out two (one) pistons on each side.

-in the opening of the trunk pulls out four clips.

-wheel arches take out the caps and Unscrew the screws (behind the fender liner) holding the wheel arch liners and side of the bumper.

-from the bottom Unscrew the four (three) screw and take out the four clips (twisted and inserted from the bottom up).

-we release the latch in the wings (pull the corners themselves).

-with the assistant pulls the bumper backwards (look for wires).

-snap together the connectors of electrical equipment.

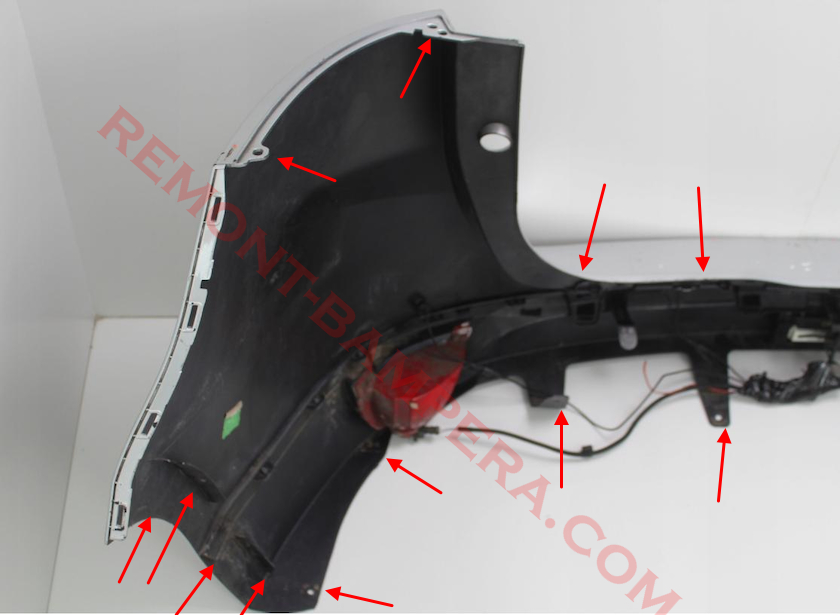

The attachment of the rear bumper Renault Scenic 3 (2009-2015)

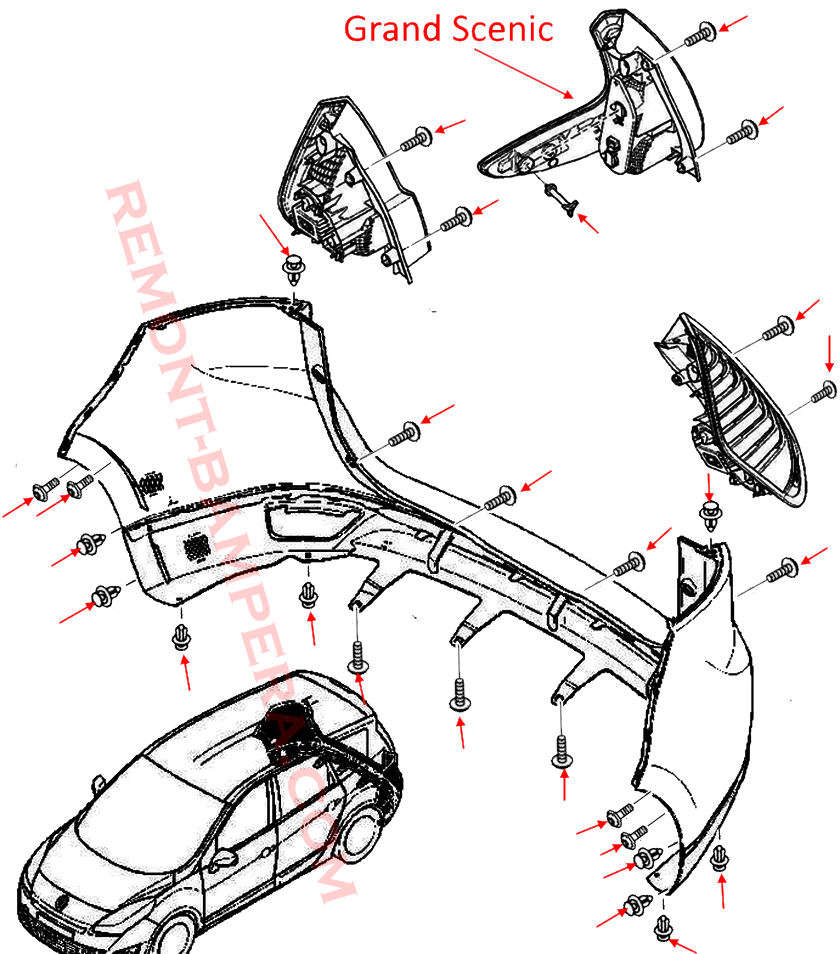

Scheme of fastening of a back bumper Renault Scenic 3 (2009-2015)

rear lamp mounting scheme Renault Scenic 3 (2009-2015)
