Depending on the year of release of attachment is different.

Front bumper

-under the hood, Unscrew the screws and take out the clips that secure the grille and the upper bumper section.

-on the perimeter in the bottom part Unscrew the screws (spun up).

-Unscrew the two screws in the lower radiator grille (wraparound from bottom to top).

-wrenched the wheel left or right, depending on which side of the bed will disassemble.

-in the wheel arches and pull out three clips from each side that secure the fender liner.

-attach the fender liner to the side and wrenched one screw on each side (spun upwards) holding the corners to the fenders

-with the assistant pulls the bumper from the guides themselves.

-remove the connector from the fog lamp (if any).

-remove the connector from the Parking aid sensors (if any).

-if you have headlight washers, disconnected the hoses (to prevent fluid from leaking on the ground, you must prepare the container or tube).

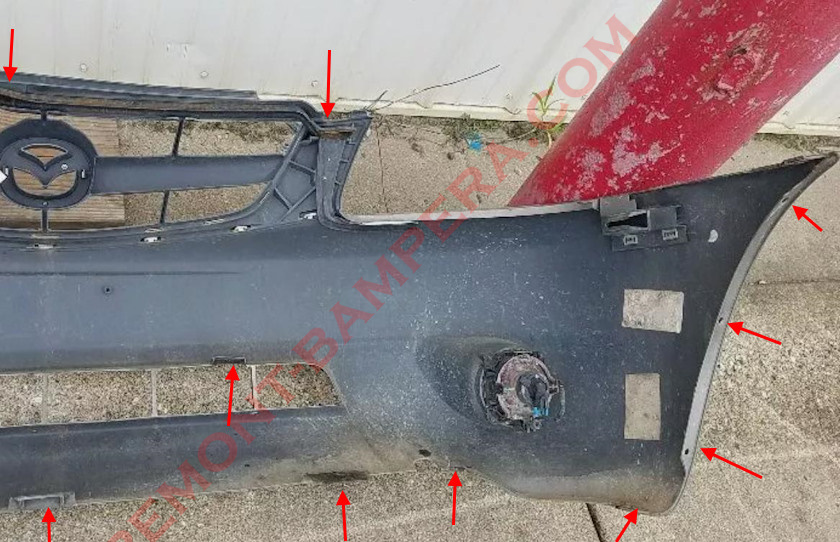

the attachment of the front bumper MAZDA TRIBUTE

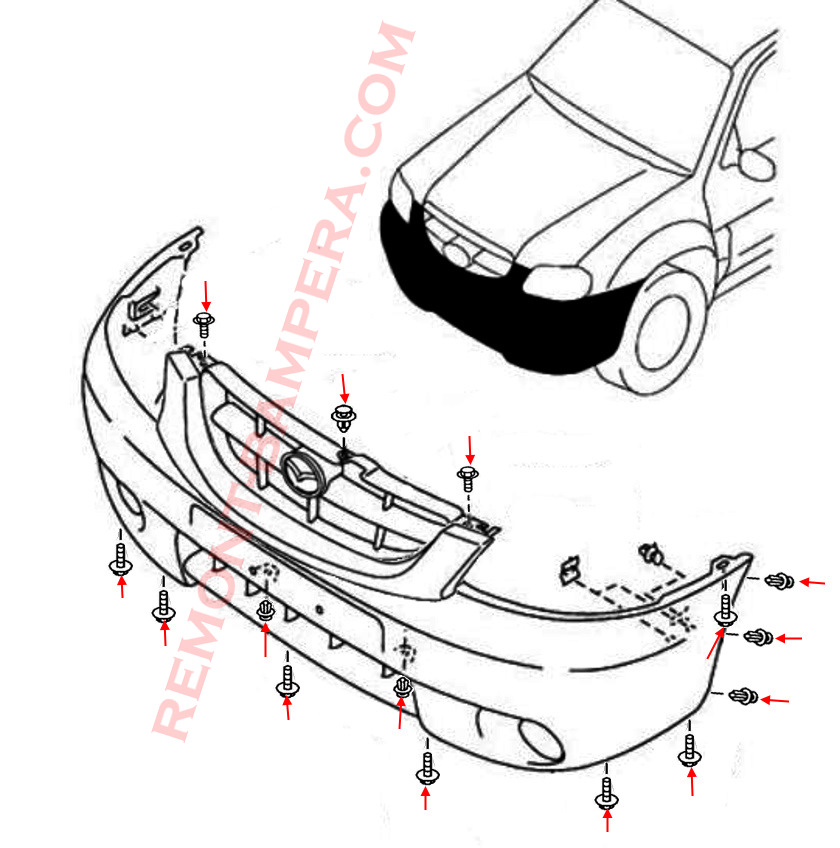

the scheme of fastening of the front bumper MAZDA TRIBUTE

Rear bumper

-open the boot lid and Unscrew the aperture screws (depending on year four or six).

-Unscrew the screws and take out the caps at the bottom of the bumper.

-in the wheel wells, Unscrew the screws holding the wheel arch liners (to remove the wheels easier to turn a ratchet with a nozzle).

-attach the fender liner to the side and Unscrew one screw on each side (spun upwards) holding the corners to the wings.

- with the assistant pulls the bumper from the guides themselves.

-remove connector from the PDC (if any).

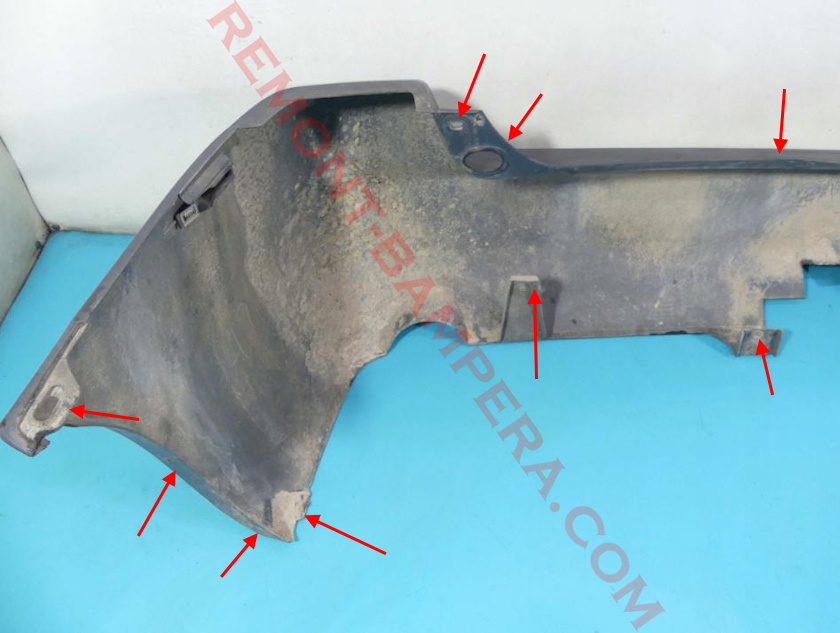

the attachment of the rear bumper MAZDA TRIBUTE

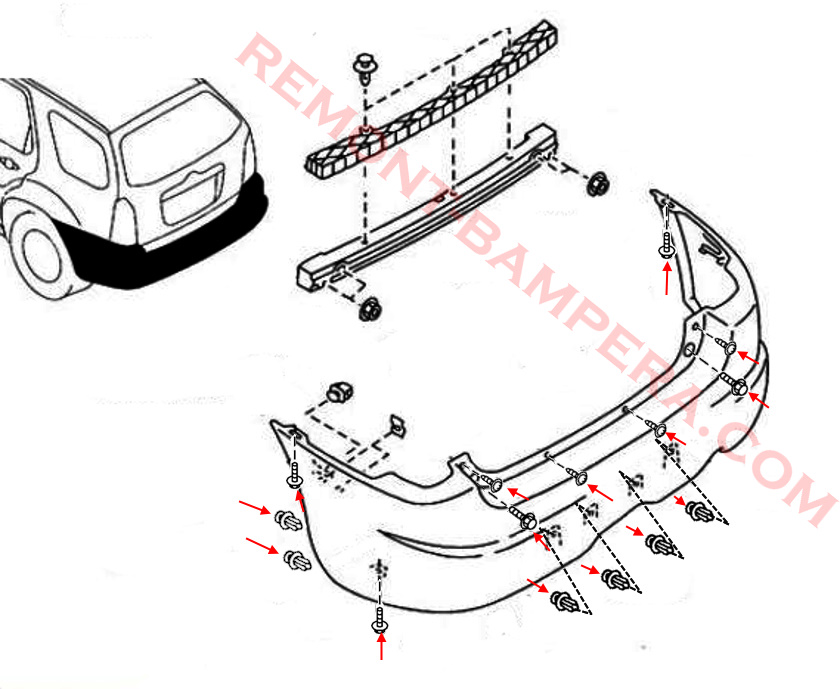

diagram of rear bumper MAZDA TRIBUTE
