Depending on the year of the attachment points are slightly different.

Front bumper

-under the hood, Unscrew the screws and take out the clips that secure the grille and the upper bumper section.

-remove radiator grille.

-Unscrew one screw on each side (spun down), and remove the turn indicators (putting forward).

-Unscrew the screws behind the turn signal.

-on the perimeter in the bottom part Unscrew the screws (spun up).

-wrenched the wheel left or right, depending on which side of the bed will disassemble.

-wheel arches take out the rivets that attach the fender liner.

-attach the fender liner to the side and Unscrew two screws on each side (spun upwards) holding the corners to the wings.

-with the assistant remove a bumper from the guides themselves.

-remove the connector from the fog lamp (if any).

-remove the connector from the Parking aid sensors (if any).

-if you have headlight washers, disconnected the hoses.

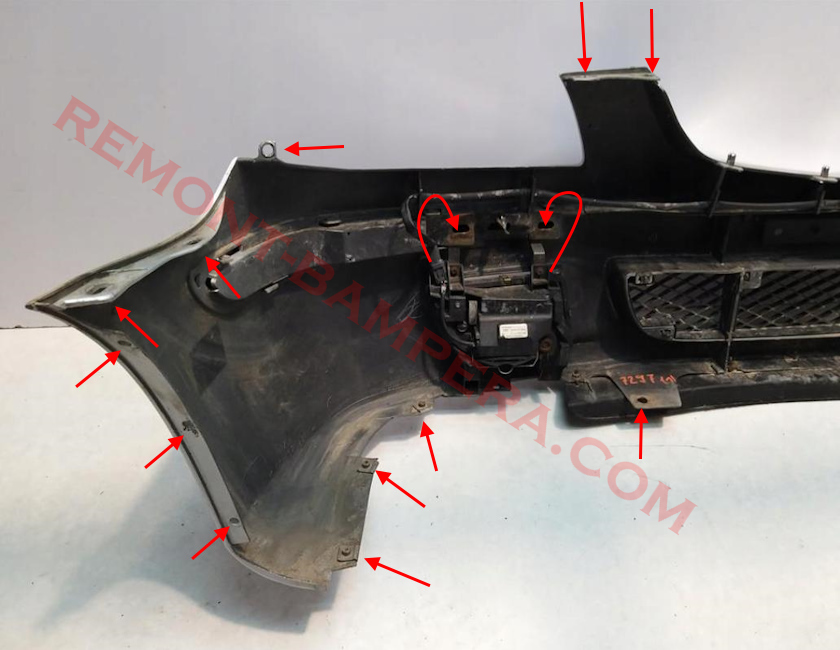

the attachment of the front bumper MAZDA PREMACY

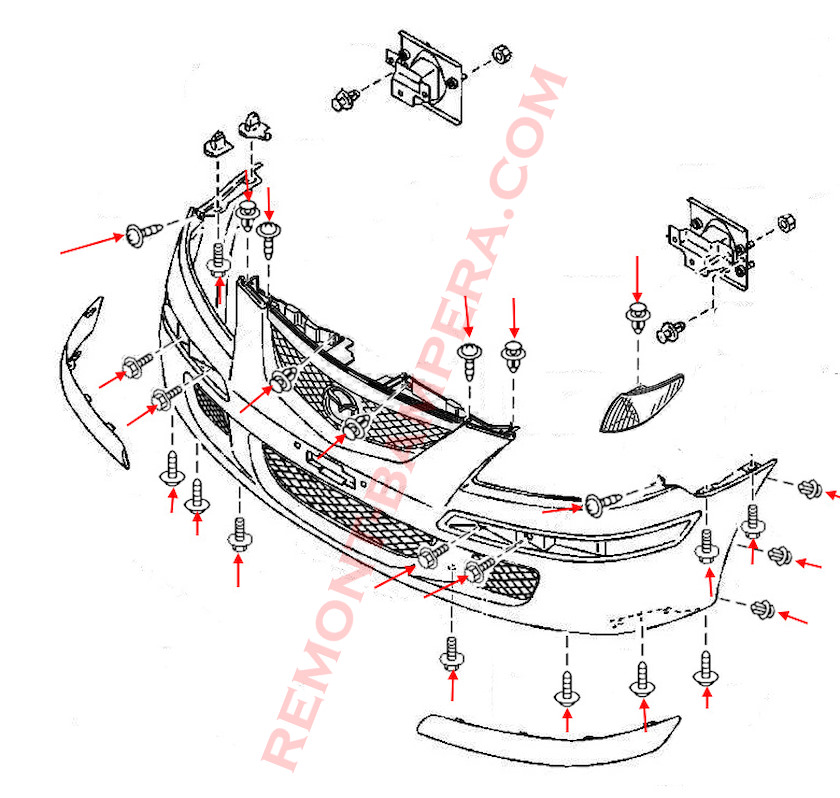

the scheme of fastening of the front bumper MAZDA PREMACY

the scheme of fastening of the turn signal MAZDA PREMACY

Rear bumper

-in the opening of the trunk Unscrew two screws on each side and remove the tail lights (hold on clips).

-the rear lights take out the caps.

-in the opening of the trunk Unscrew guilt.

-Unscrew the screws at the bottom of the bumper.

-wheel arches Unscrew the screws that attach the fender liner.

-attach the fender liner to the side and Unscrew one screw on each side (twisted from the bottom up) that attach the angles to the wings.

-release the clips in the fenders and remove the bumper from the guides themselves.

-remove connector from the PDC (if any).

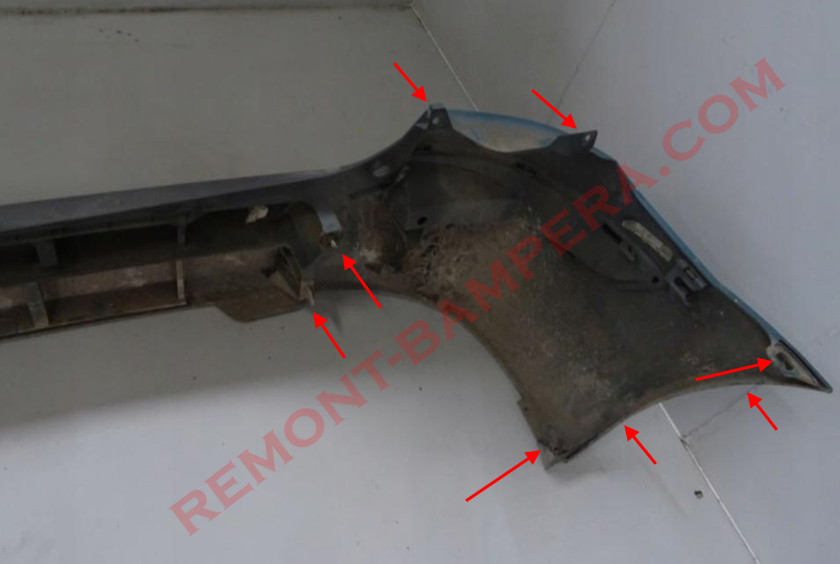

the attachment of the rear bumper of the MAZDA PREMACY

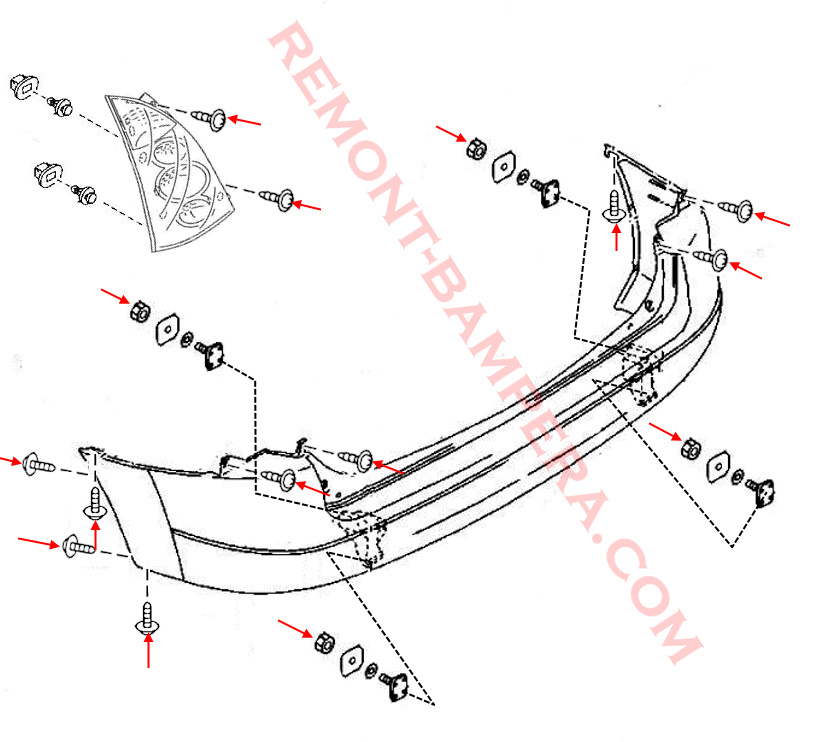

the scheme of fastening the rear bumper of the MAZDA PREMACY

scheme of fastening of rear light MAZDA PREMACY
