Depending on the year of the attachment points are slightly different.

Front bumper

-under the hood, Unscrew the eight screws (spun up).

-the edges of the bumper grille and pull out two plugs and Unscrew the screws under them.

-on the perimeter in the bottom part Unscrew ten screws (spun up).

-wrenched the wheel left or right, depending on which side of the bed will disassemble.

-wheel arches take out the five rivets on each side holding the fender liner.

-attach the fender liner to the side and Unscrew from the wing with one screw and three nuts on each side.

-with the assistant remove a bumper from the guides themselves.

-remove the connector from the fog lamp (if any).

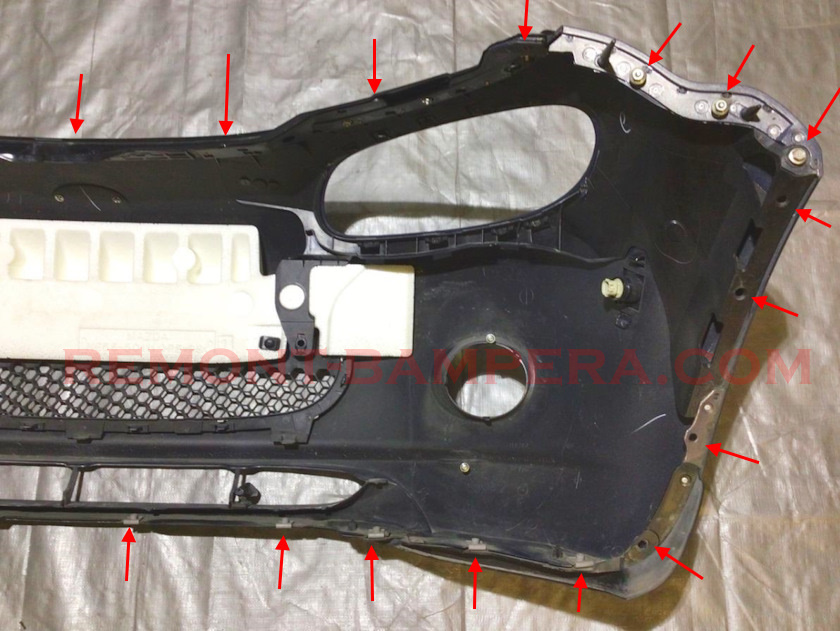

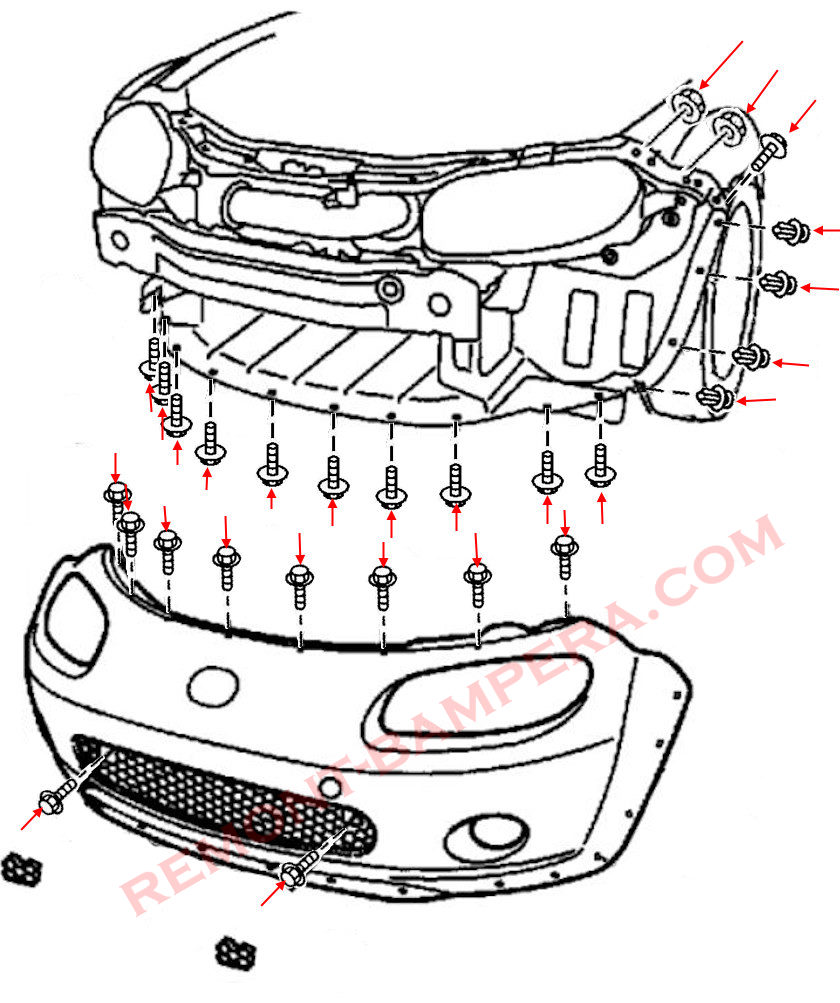

the attachment of the front bumper of the MAZDA MX-5 NC (2005-2015)

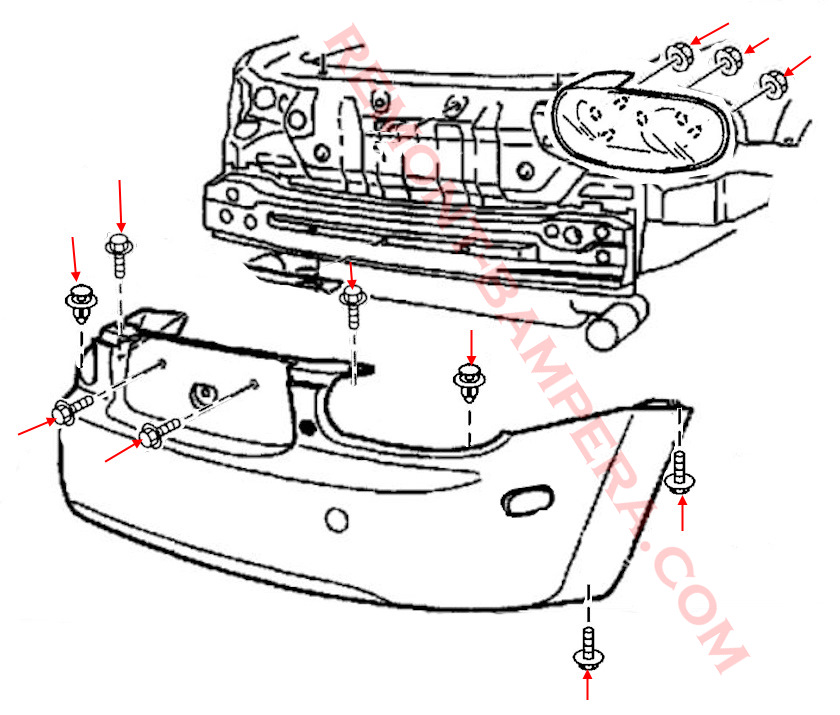

the scheme of fastening the rear bumper of the MAZDA MX-5 NC (2005-2015)

Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-in the trunk, Unscrew the screws and remove the rear trim panel.

-the plating Unscrew three nuts on each side and remove the tail lights.

-Unscrew the screws (spun down) that secure the upper part of the bumper.

-remove the license plate with the frame.

-under the license plate, Unscrew the screws.

-Unscrew the screws at the bottom (spun up).

-wheel arches Unscrew the screws that attach the fender liner.

-attach the fender liner to the side and Unscrew one screw on each side (spun upwards) holding the corners to the wings.

-release the clips in the fenders and remove the bumper from the guides themselves.

-remove the connectors from the equipment (subject to availability).

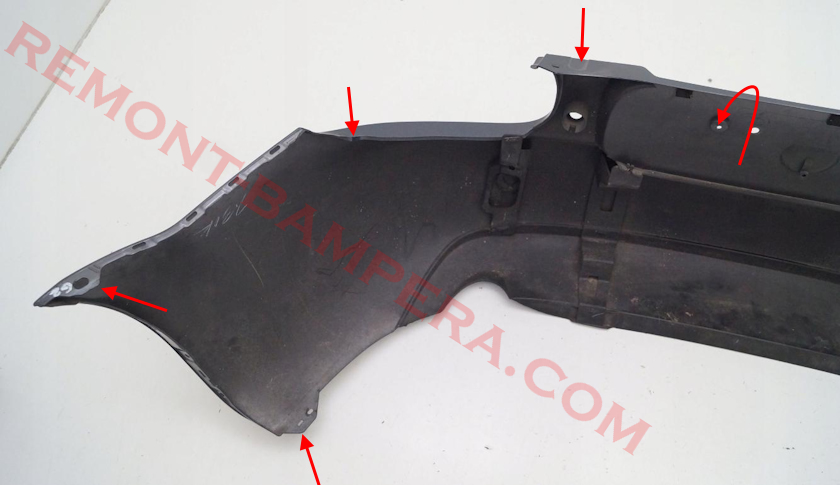

the attachment of the rear bumper of the MAZDA MX-5 NC (2005-2015)

scheme of fastening of tail light MAZDA MX-5 NC (2005-2015)

the scheme of fastening the rear bumper of the MAZDA MX-5 NC (2005-2015)
