Citroen Xsara Picasso (1999-2012)

Both generations of the Citroen Xsara Picasso bumper attached almost the same.

Front bumper

-open the hood.

-under the hood, unscrew the three screws (spun down) that secure the top and release the two latches near the headlights.

-unscrew the seven screws (spun up) that secure the bottom of the bumper.

-depending on which side we will disassemble, turn the wheels.

-wheel arches take out the caps and release the fender liner (front).

-for the fender liner, unscrew two screws on each side that attach the corners to the wings (spun up).

-pulls the bumper forward (be careful not to break the wires).

-remove connectors from electrical equipment (if any).

front bumper attachment points Citroen Xsara Picasso (1999-2012)

Front bumper mounting scheme Citroen Xsara Picasso (1999-2012)



Rear bumper

⇒Tips for removing bumpers and how to avoid breaking anything..⇐

-open the trunk lid.

-in the side trim of the trunk, open the plugs (you need to gain access to the back of the rear lights).

-through the openings, press with a flat screwdriver on the latches and pull out the rear lights.

-under the rear lights, unscrew one nut on each side.

-in the wheel wells take out the caps and release the fender liner.

-for the fender liner, unscrew one screw on each side that attach the corners of the bumper to the wings.

-unscrew the screws from the bottom (spun up).

-we release the latch in the opening of the trunk and at the bottom.

-pull the bumper back.

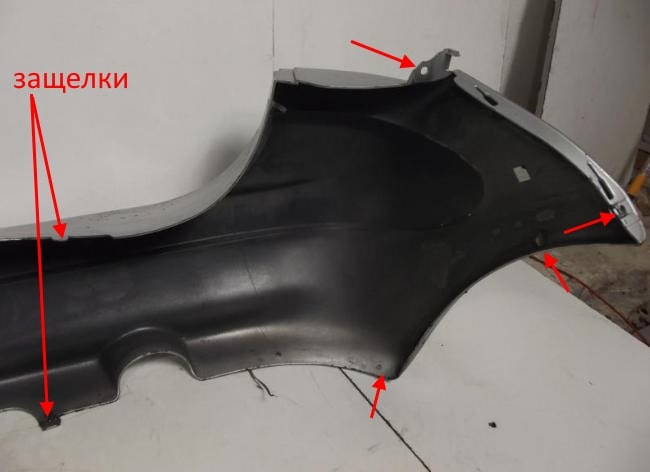

rear bumper attachment points Citroen Xsara Picasso (1999-2012)

Rear bumper mounting scheme Citroen Xsara Picasso (1999-2012)
